6+12Ar+6 / 6+16Ar+6 Low‑E IGU | Standard & Wide‑Cavity Low‑Emissivity Insulating Glass Units
Standard & Wide‑Cavity Low‑Emissivity Insulating Glass Units – The Workhorses of Commercial Curtain Walls
6+12Ar+6 and 6+16Ar+6 are the two most frequently specified Low‑E IGU configurations in commercial construction worldwide. Both consist of 6mm glass outer and inner panes, a sealed cavity filled with argon gas, and a soft‑coat Low‑E coating on one cavity‑facing surface. The only difference is the cavity width: 12mm vs. 16mm — but that 4mm gap makes a measurable difference in thermal performance, acoustic insulation, and overall cost.

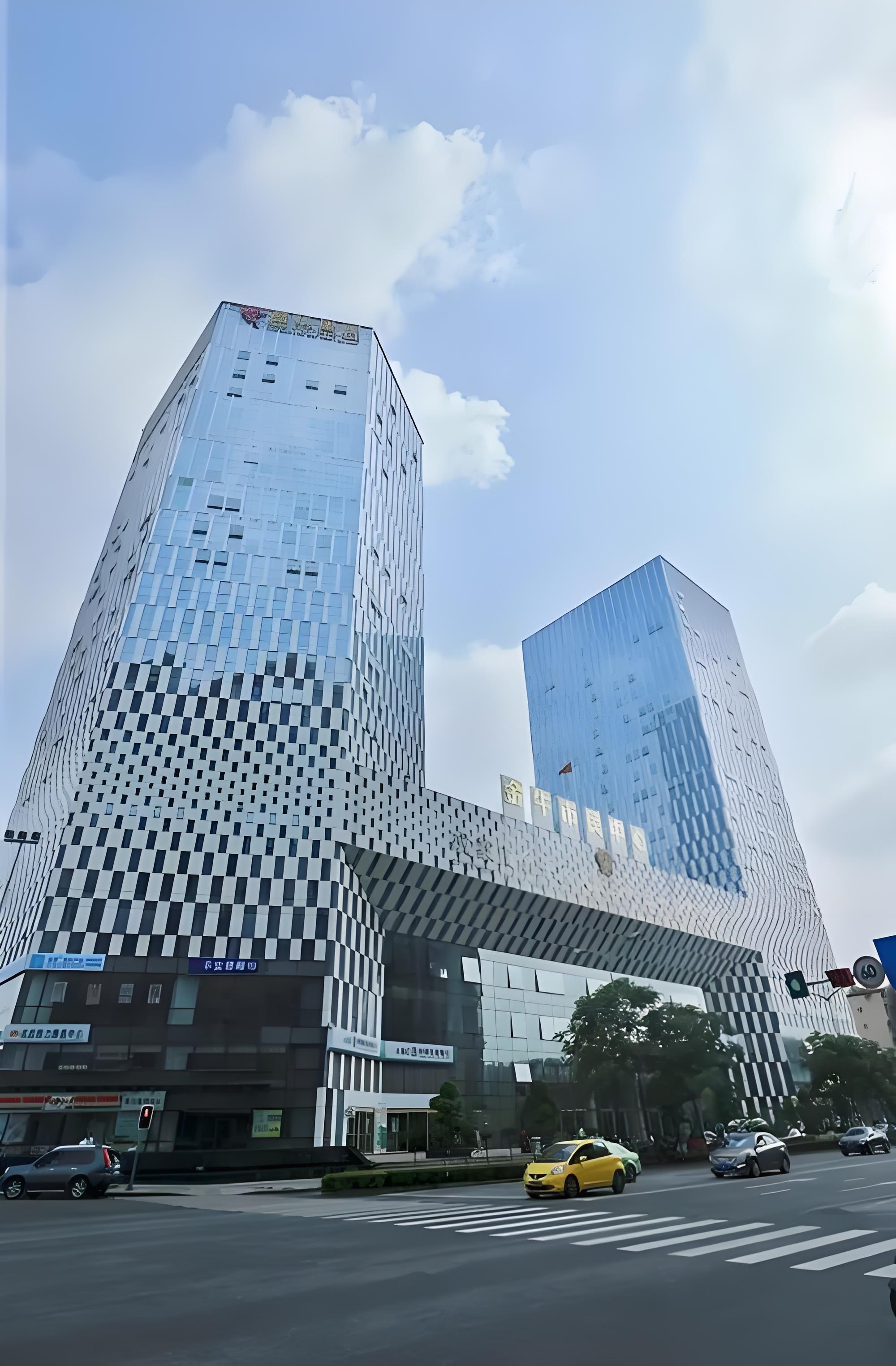

These configurations are the backbone of modern curtain wall design — versatile enough for office towers, hotels, hospitals, airports, and educational buildings across every climate zone. They support single, double, and triple silver Low‑E coatings, allowing specifiers to fine‑tune SHGC and U‑value to meet project‑specific energy targets.
💡 Industry reality: Over 70% of commercial curtain wall IGU orders globally fall into either 6+12Ar+6 or 6+16Ar+6 configurations. Understanding the trade‑offs between them is essential for procurement managers balancing performance budgets.
| Parameter | 6+12Ar+6 Low‑E IGU | 6+16Ar+6 Low‑E IGU |
|---|---|---|
| Outer Lite | 6mm Clear / Tempered | 6mm Clear / Tempered |
| Inner Lite | 6mm Clear / Tempered | 6mm Clear / Tempered |
| Cavity Width | 12mm | 16mm |
| Gas Fill | Argon (≥90%) | Argon (≥90%) |
| Overall Thickness | 24mm | 28mm |
| U‑Value (double silver) | ~1.6 W/m²K | ~1.4 W/m²K |
| U‑Value (triple silver) | ~1.4 W/m²K | ~1.2 W/m²K |
| SHGC (double silver) | 0.25–0.44 | 0.22–0.44 |
| VLT | 41–72% | 41–72% |
| Acoustic (Rw) | ~31 dB | ~33 dB |
| Weight (approx.) | ~30 kg/m² | ~30 kg/m² |
| Frame Depth Required | Min. 24mm | Min. 28mm |
| Max Size | 3200 × 7500 mm | 3180 × 7400 mm |
| Relative Cost (baseline) | Baseline | +5–10% |
| Best For | Budget commercial, light commercial, residential high‑rise | Premium commercial, curtain walls, high‑rise |
| Coating Generation | VLT (%) | SHGC | U‑Value (W/m²K) | Typical Application |
|---|---|---|---|---|
| Single Silver | 61–72 | 0.37–0.53 | ~1.8 | Cold climates, budget residential |
| Double Silver (balanced) | 55–65 | 0.30–0.39 | ~1.6 | Light commercial, mid‑rise |
| Double Silver (solar control) | 43–50 | 0.23–0.27 | ~1.6 | Hot climates, west facades |
| Triple Silver (balanced) | 57–62 | 0.22–0.26 | ~1.4 | High‑performance commercial |
| Coating Generation | VLT (%) | SHGC | U‑Value (W/m²K) | Typical Application |
|---|---|---|---|---|
| Single Silver | 59–71 | 0.36–0.49 | ~1.6 | Cold climates, basic commercial |
| Double Silver (balanced) | 55–65 | 0.28–0.36 | ~1.4 | Commercial curtain wall standard |
| Double Silver (solar control) | 41–47 | 0.22–0.26 | ~1.4 | Hot climates, west/south facades |
| Triple Silver (balanced) | 55–60 | 0.20–0.25 | ~1.2 | Passive House, net‑zero, super‑tall |
| Triple Silver (ultra‑low SHGC) | 41–45 | 0.15–0.19 | ~1.2 | Extreme tropical, zero‑carbon |
💡 Key insight: The 4mm wider cavity in 6+16Ar+6 improves U‑value by approximately 0.2 W/m²K and acoustic performance by 2 dB — a meaningful upgrade for only 5–10% additional cost.
| Decision Factor | Choose 6+12Ar+6 | Choose 6+16Ar+6 |
|---|---|---|
| Budget priority | ✅ Lower unit cost | ❌ Slightly higher cost |
| Thermal performance target | ❌ Higher U‑value (~1.6) | ✅ Lower U‑value (~1.4) |
| Energy code compliance | Acceptable for moderate codes | ✅ Required for strict codes (ASHRAE 90.1‑2022) |
| Acoustic requirement | Standard (~31 dB) | ✅ Improved (~33 dB) |
| Frame depth limitation | ✅ Fits 24mm frames | ❌ Requires 28mm+ frames |
| Weight concern | Same weight | Same weight |
| Jumbo size availability | ✅ Up to 3250×8000mm | ✅ Up to 3190×7800mm |
| Passive House certification | ❌ Not achievable | ✅ Possible with triple silver + krypton |
| LEED / BREEAM contribution | Moderate | ✅ Higher (lower U‑value = more points) |
Both configurations support the full range of soft‑coat Low‑E coatings:
| Coating Type | Silver Layers | Emissivity | Best For |
|---|---|---|---|
| Single Silver | 1 | 0.12–0.15 | Cold climates, maximum daylight, budget projects |
| Double Silver | 2 | 0.06–0.10 | Most common – balanced performance/cost |
| Triple Silver | 3 | 0.03–0.07 | Highest performance, Passive House, hot climates Coating placement: |
| Specification | 6+12Ar+6 | 6+16Ar+6 |
|---|---|---|
| Glass Panes | 6mm + 6mm (clear, tempered, laminated, or tinted) | 6mm + 6mm |
| Cavity | 12mm sealed | 16mm sealed |
| Gas Fill | Argon ≥90% (krypton optional) | Argon ≥90% (krypton optional) |
| Spacer Types | Aluminum, Warm Edge TPE, Swisspacer, Stainless Steel | Same |
| U‑Value Range | 1.4–1.8 W/m²K | 1.2–1.6 W/m²K |
| SHGC Range | 0.22–0.53 | 0.15–0.49 |
| VLT Range | 41–72% | 41–72% |
| UV Blockage | 85–98% (coating dependent) | 85–98% |
| Sound Reduction (Rw) | 30–32 dB | 32–34 dB |
| Max Size | 3250 × 7900 mm | 3210 × 7800 mm |
| Weight | ~30 kg/m² | ~30 kg/m² |
| Certifications | EN 1279‑5, ASTM E2190, IGCC, CE | Same |
| MOQ | 1 × 20′ FCL | Same |
| Lead Time | 4–6 weeks | 4–6 weeks |
Both configurations undergo identical processing steps:
| Step | Detail |
|---|---|
| Cutting | CNC cutting with ±0.5mm tolerance |
| Edge deletion | Automated removal of Low‑E coating 10–15mm from edge (mandatory for soft coat) |
| Tempering | Heat‑soak tested per EN 12179 |
| Washing | Deionized water, contamination‑free |
| Spacer application | Continuous bend or corner key; desiccant fill |
| Gas filling | Argon concentration verified by spark test |
| Sealing | Primary: polyisobutylene (PIB); Secondary: polysulfide or silicone |
| Quality check | Dew point test, U‑value verification, visual inspection |
⚠️ Critical note for 6+16Ar+6: The wider cavity increases the risk of gas convection at low temperatures. To mitigate, ensure warm‑edge spacer (TPE or stainless steel) is specified for projects in cold climates.
| Coating | Gas | Price Range (USD/m²) |
|---|---|---|
| Single Silver | Argon | $22–34 |
| Double Silver (balanced) | Argon | $26–38 |
| Double Silver (solar control) | Argon | $28–40 |
| Triple Silver (balanced) | Argon | $34–48 |
| Triple Silver (balanced) | Krypton | $40–56 |
| Coating | Gas | Price Range (USD/m²) |
|---|---|---|
| Single Silver | Argon | $24–36 |
| Double Silver (balanced) | Argon | $28–42 |
| Double Silver (solar control) | Argon | $30–44 |
| Triple Silver (balanced) | Argon | $36–50 |
| Triple Silver (ultra‑low SHGC) | Argon | $38–54 |
| Triple Silver (balanced) | Krypton | $44–60 |
| Triple Silver (ultra‑low SHGC) | Krypton | $46–64 |
💡 Price difference: 6+16Ar+6 is typically $2–6/m² more expensive than 6+12Ar+6 for the same coating and gas. This represents a 5–10% premium for improved thermal and acoustic performance. For a precise project quotation with coating, gas, spacer, and size specifications, send us your glass schedule.
Q1: What is the difference between 6+12Ar+6 and 6+16Ar+6 Low‑E IGU?
The cavity width: 12mm vs. 16mm. The wider cavity improves U‑value by ~0.2 W/m²K and acoustic performance by ~2 dB, at a 5–10% cost premium.
Q2: Which configuration is more common for commercial curtain walls?
6+16Ar+6 is the industry standard for commercial curtain walls due to its better thermal performance. 6+12Ar+6 is used for budget projects or where frame depth is limited.
Q3: Can both configurations use double silver Low‑E?
Yes. Both support single, double, and triple silver soft‑coat Low‑E coatings.
Q4: What is the U‑value of 6+16Ar+6 with double silver?
Approximately 1.4 W/m²K. With triple silver, it drops to ~1.2 W/m²K.
Q5: What is the maximum size?
6+12Ar+6: up to 3320 × 8100 mm. 6+16Ar+6: up to 3300 × 7950 mm.
Q6: Are these configurations suitable for Passive House?
6+16Ar+6 with triple silver and krypton fill can achieve U‑value ~1.0 W/m²K, approaching Passive House requirements. For full Passive House certification, triple glazing (e.g., 6+16Kr+6+16Kr+6) is typically needed.
Q7: Do I need edge deletion for these IGU?
Yes. Both use soft‑coat Low‑E, which requires edge deletion to ensure seal integrity.
Q8: What certifications do you provide?
EN 1279‑5, ASTM E2190, IGCC, CE, ISO 9001, CCC, SGS.
Q9: What is the lead time?
4–6 weeks for both configurations with argon fill. Krypton fill adds 2 weeks.
Q10: Can I mix different glass types (e.g., laminated outer, tempered inner)?
Yes. Both configurations can be customized with any combination of clear, tempered, laminated, or tinted glass.
Tell us your project requirements and we'll respond within 48 hours with a competitive FOB quotation and performance analysis.
