H1: Acoustic Glass Panels
Subheading: High-Performance Soundproof Glass Wall Panels for Office Pods, Meeting Pods & Acoustic Partitions
Spec badges: STC 39–50 · Acoustic Laminated / Insulated · Jumbo Sizes · OEM Cut-to-Size · CE / ASTM / AS-NZS
Primary CTA: [Request a Quote] · Secondary CTA: [Download Datasheet]
Design note (JUMBO house style): hero uses one technical hero line + a two-CTA block, mirroring the Low-E page pattern . No marketing fluff.
02 — Product Definition (What Is It?)
H2: What Are Acoustic Glass Panels?
Acoustic Glass Panels are flat, dimensionally-finished soundproof glass elements manufactured for use as the wall and partition surfaces of modular office pods, meeting rooms, recording booths, and open-plan architectural glazing. Each panel is built from acoustic laminated glass, an acoustic insulating glass unit (IGU), or a laminated-insulated composite, cut and processed to your exact panel size with polished edges, holes, notches and silk-screen as required. Unlike a generic "acoustic glass" sheet, a panel is a ready-to-install component: the glass structure, edgework and hardware cut-outs are engineered together so the panel drops straight into your pod or partition framing system.
(≈ 95 words — readable in under 30 seconds)
03 — Glass Structure
H2: Glass Structure & Composition
Acoustic Glass Panels are supplied in three build families. All use JUMBO's oversize-capable tempering and laminating lines.
A. Acoustic Laminated Panel (standard wall panel)
6 mm Tempered Glass
↓
Acoustic PVB Interlayer (0.76 / 1.14 / 1.52 mm)
↓
6 mm Tempered Glass
Overall thickness ≈ 12–16 mm. The workhorse for single-skin pod walls and glazed partitions.
B. Acoustic Insulated Panel / IGU (upgraded isolation)
6 mm Tempered Glass
↓
16 mm Argon Cavity (warm-edge spacer + desiccant)
↓
8 mm Tempered Glass ← asymmetric lite defeats coincidence dip
Overall thickness ≈ 30 mm. Used where the full pod wall must hit STC 45+.
C. Acoustic Laminated Insulated Panel (premium / recording-grade)
6T + Acoustic PVB + 6T
↓
16 mm Argon Cavity
↓
8 mm Tempered Glass
Overall thickness ≈ 38 mm. Executive pods, recording/podcast booths, boardrooms.
Structural variables
| Element | Range / options |
|---|
| Glass lites | Monolithic or 2–3 lites (double / triple) |
| Per-lite thickness | 5 / 6 / 8 / 10 / 12 mm |
| Interlayer | Acoustic PVB (std.), SGP on request |
| Cavity | 9–20 mm, air or Argon 90% / Krypton |
| Asymmetry | User-defined (e.g. 6 + 8) to shift coincidence away from speech band (500–4000 Hz) |
| Max panel size | 2440 × 5000 mm (jumbo, from flat tempered/laminated/IGU lines)
|
04 — Available Configurations
H2: Available Configurations
| Configuration (build-up) | Overall Thickness | Indicative STC* | Typical Panel Use |
|---|
| 5 + Acoustic PVB + 5 | ≈ 10 mm | STC 39–40 | Phone-booth wall panel |
| 6 + Acoustic PVB + 6 | ≈ 12 mm | STC 41–43 | Office-pod wall panel |
| 8 + Acoustic PVB + 8 | ≈ 16 mm | STC 43–45 | Meeting-pod wall panel |
| 6 + 16Ar + 8 (IGU) | ≈ 30 mm | STC 45–47 | High-end pod / partition panel |
| 6+PVB+6 + 16Ar + 8 (laminated IGU) | ≈ 38 mm | STC 47–50 | Executive / recording booth panel |
| Custom | Project-specific | Project-specific | OEM panel systems
*Indicative only. Achieved STC depends on the complete system — frame, gasket, perimeter seal, panel fixings and installation. Lab reports per build available on request. |
SEO decision (from the ChatGPT brief): all build-ups live in one table on one URL. No thin-content spin-off pages per thickness → no cannibalisation, one authoritative page for Google to index.
05 — Acoustic Performance
H2: Acoustic Performance
- STC: 39 – 50 (configuration-dependent)
- Weighted sound reduction index (Rw): up to 47 dB (EN ISO 717-1)
- OITC: reported for exterior-grade panel builds
- Frequency optimisation: speech band 500–4000 Hz; asymmetric lites + cavity push the coincidence dip out of this band
- Test basis: ASTM E90 / E413, ISO 10140 series, EN 12758
- Datasheet: 1/3-octave transmission-loss curve supplied on request
06 — Safety & Thermal Performance
H2: Safety & Thermal Performance
- Impact safety: Class A / B (EN 12600); ANSI Z97.1 Category II
- Post-breakage: laminated panel — fragments bond to PVB, no fallout (critical for overhead / full-height partition panels)
- Tempered strength: 4–5× annealed glass; optional heat soak to EN 14179-1 against spontaneous breakage
- Sealed-unit durability (IGU panels): desiccant spacer, dual seal (butyl + polysulfide/silicone), fog-free guarantee
- Thermal (IGU / Low-E panels): U-value 1.2–2.8 W/m²K; optional Low-E — see Low-E Acoustic Glass
- UV: PVB interlayer blocks up to 99% UV
07 — Specifications
H2: Technical Specifications
| Parameter | Details |
|---|
| Glass type | Fully tempered / heat-strengthened (optional) |
| Interlayer | Acoustic PVB (std.), SGP on request |
| Build | Monolithic laminated / IGU / laminated-IGU composite |
| Overall thickness | 10 – 38 mm |
| Max panel size | 2440 × 5000 mm (jumbo); IGU line to 2440 × 12 m |
| VLT | 78–90% (clear); Low-Iron available — see Low-Iron Acoustic Glass |
| Edgework | Polished / grinded / CNC machined |
| Processing | CNC cut, waterjet, hinge & hardware holes, notches, silk-screen, acid-etched / frosted |
| Quality standard | ISO, CCC, SGCC, ANSI Z97.1, CE EN12150 / EN12600 / EN14449
|
08 — Applications
H2: Typical Applications
- Office Pods — single-user focus pods, STC 40+ privacy → Applications / Office Pods
- Meeting Pods — speech-intelligibility walls → Applications / Meeting Pods
- Phone Booths — compact acoustic cabins → Applications / Phone Booths
- Recording & Podcast Booths — vocal-grade isolation → Applications / Recording Booths
- Acoustic Work Pods → Applications / Acoustic Work Pods

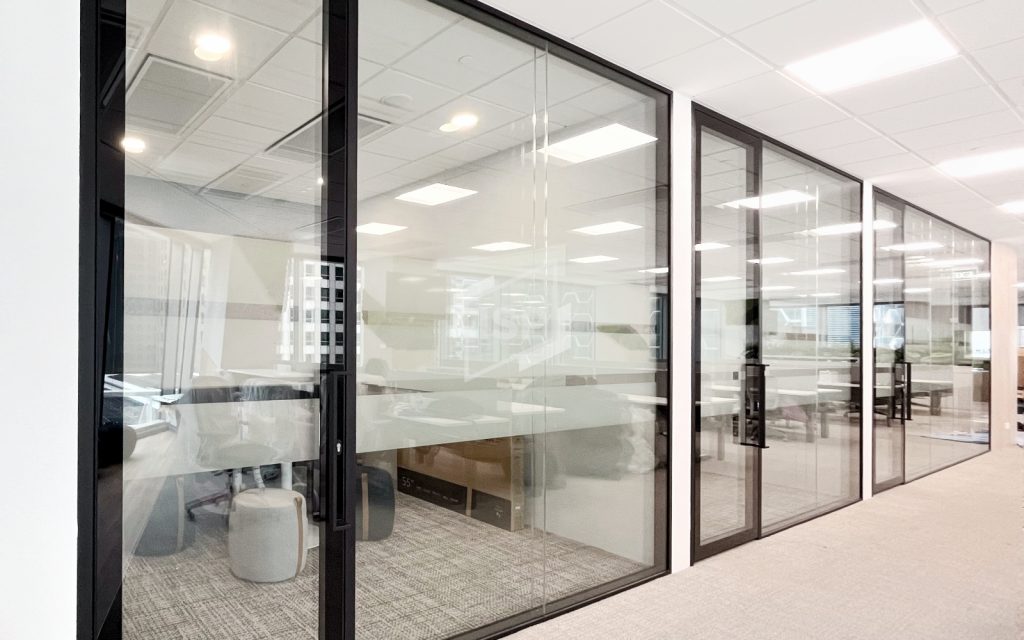

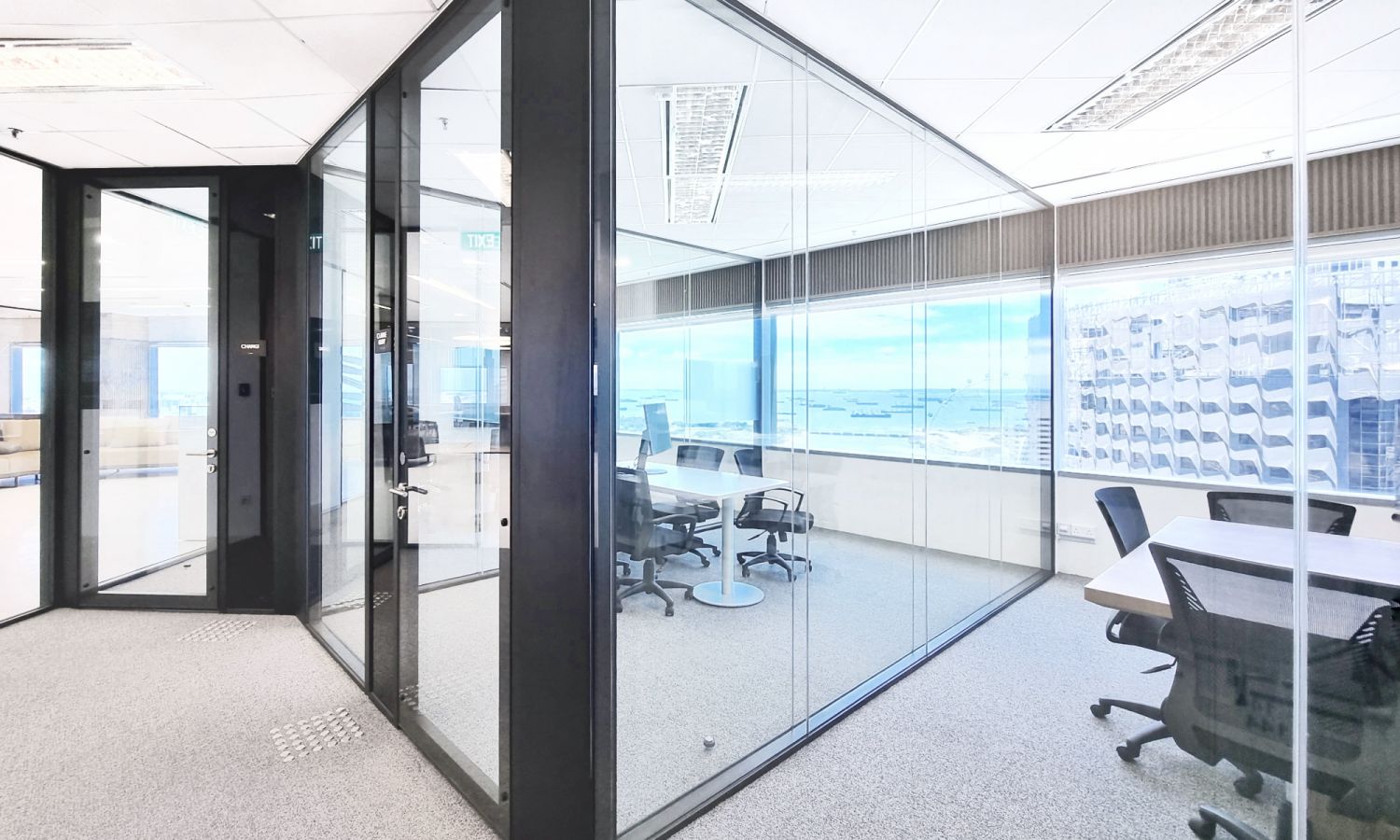

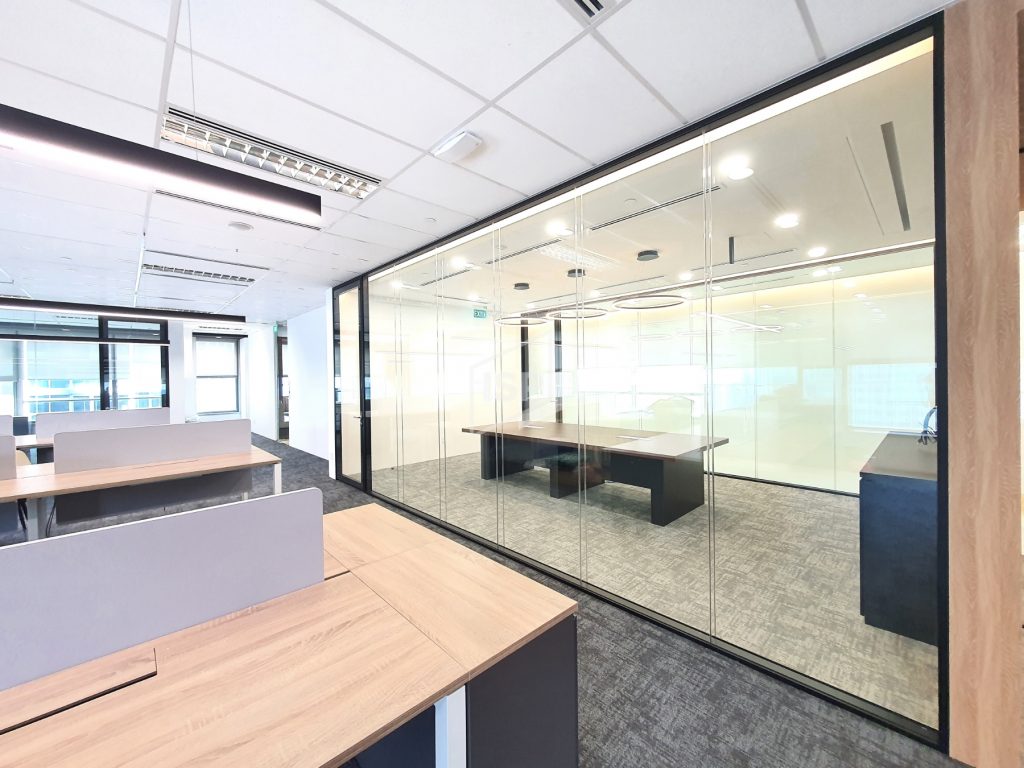

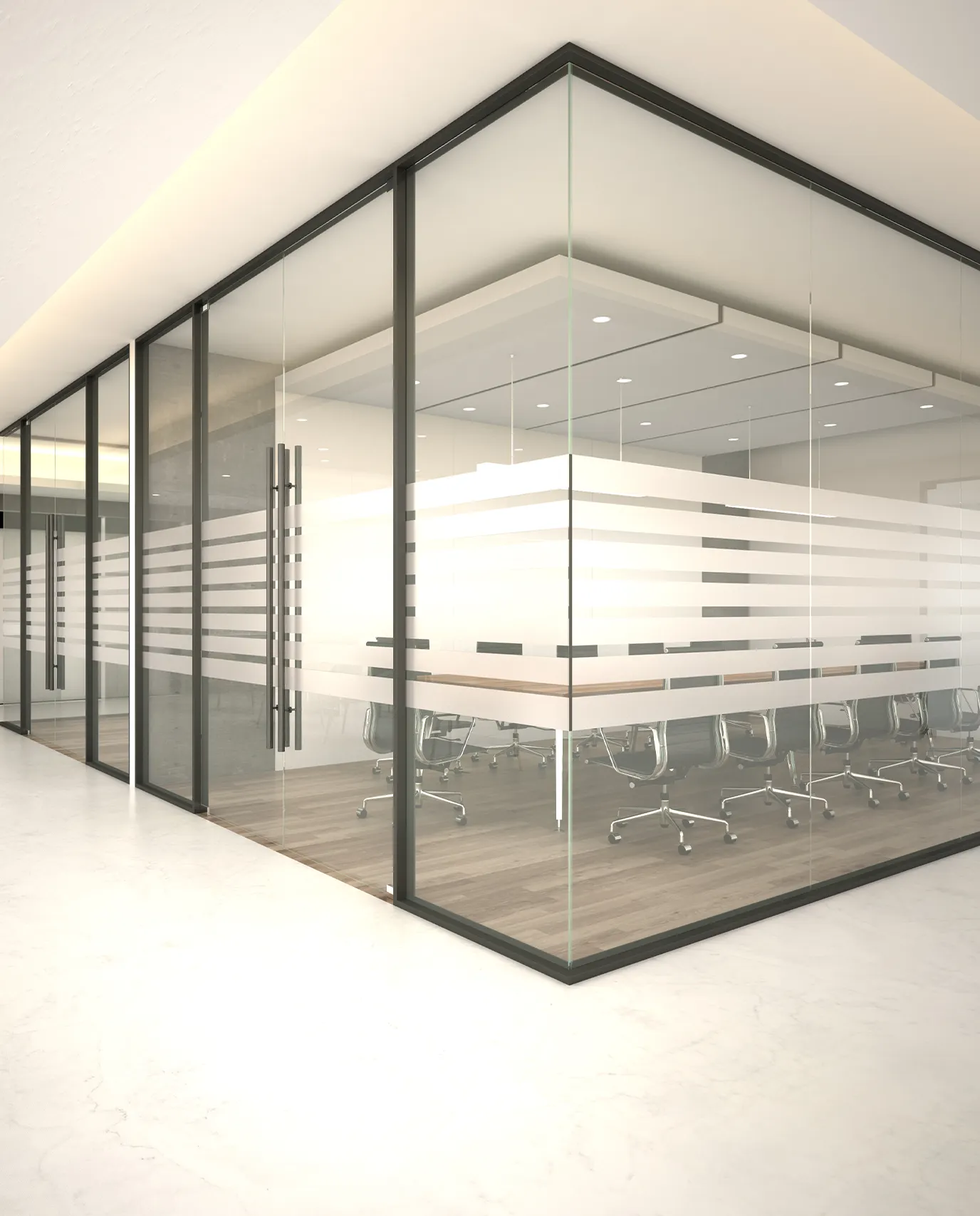

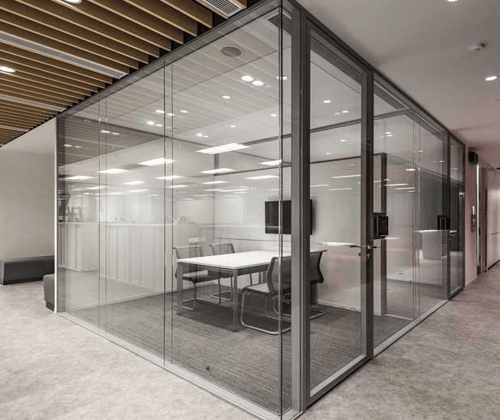

- Architectural glazed partitions — open-plan offices, boardrooms, hospitality
Rule from the brief: Applications are downstream anchor links only. "Office Pod Glass Panel" is not a product page — keeping the Products branch topically clean and preventing URL sprawl.
09 — Customization & OEM
H2: Customization & OEM Options
Panels are manufactured to your exact panel drawing:
- Build: choose laminated / IGU / laminated-IGU and asymmetry to hit your STC or Rw target
- Dimensions: cut-to-size including jumbo panels; CNC tolerance ±0.5 mm
- Processing: precision hinge cut-outs, lock boreholes, closer mounts, handle holes, notches for hardware integration
- Edge & surface: silk-screen printing, frosted acid-etch, digital ceramic frit (branding / privacy), Low-Iron, tinted, reflective
- Panel system compatibility: we work from your hardware / framing supplier's templates (Assa Abloy, Dormakaba, etc.)
- OEM packaging: export-standard fumigated wooden crates, EVA foam edge guards, vertical segregated compartments, tension-strapped for sea/land freight
- MOQ: pod-manufacturer friendly; prototype panel in 7–10 days; typical lead time 3–4 weeks after drawing confirmation
10 — Testing & Certifications
H2: Testing & Certifications
- Acoustic: ASTM E90, ISO 10140, EN 12758
- Safety glass: EN 12150, EN 14449, EN 12600, ANSI Z97.1, AS/NZS 2208
- Sealed unit (IGU): EN 1279 (1–4)
- Factory: ISO 9001:2015; CE / UKCA
- Third-party: SGS / Intertek on request
- Document pack: test reports, Declaration of Performance, compliance certificates shipped with every order
11 — Manufacturing Capability
H2: Why Source Acoustic Panels From JUMBO?
- 25+ years & two manufacturing bases (Gevergel Engineering Glass · Shunzhifa Glass)
- Oversize leadership — jumbo tempered 2440 × 20 000 mm; laminated 2440 × 18 000 mm → panels stay seamless at pod-wall scale
- Dedicated acoustic line — separate cavity-assembly room, humidity-controlled for IGU panels
- Precision CNC — hardware cut-outs ±0.5 mm, every panel spark-tested + laser dimension-checked
- In-house acoustic R&D — we engineer, we don't just trade
- Export proven — supplied to 100+ countries, Incoterms-ready, ocean-freight crate design
- Full-process support — selection, processing, testing, packing, installation guidance
12 — RFQ (Request for Quotation)
H2: Send Your Panel Specification
Match the field format JUMBO already uses on its product pages — procurement managers can paste straight from their BOQ:
- Build / glass structure (e.g.
6 mm + 1.14 mm Acoustic PVB + 6 mm, or IGU 6 + 16Ar + 8) - Panel dimensions — width × height × quantity (per panel + total sqm)
- Acoustic target — STC or Rw, if specified
- Processing — edgework, hinge/lock/hardware cut-outs, notches, surface treatment
- Glass options — Low-Iron / tinted / Low-E / silk-screen
- Panel system / hardware — supplier + template (hinge type, borehole size, closer)
- Project location & climate zone (for IGU / Low-E specification)
- Certifications required (CE / UKCA / AS-NZS / third-party)
- Target delivery date & Incoterm
- 📧 Email your spec to: sales@jumbotemperedglass.com
- 🌐 Or use the RFQ form → we respond within 48 hours with a competitive FOB quotation and performance analysis.
- [Request a Quote] · [Download Datasheet]
