H1: Acoustic Glass Systems
Subheading: Complete Soundproof Glass Wall Systems for Office Pods, Meeting Rooms & Architectural Partitions
Key Specs Badge: STC 42–52 ｜ Integrated Panels & Doors ｜ OEM Modular ｜ CE / ASTM ｜ Custom Engineering
CTA Buttons: [Request a Quote] [Download System Brochure]
02 – Product Definition (What Is It?)
H2: What Are Acoustic Glass Systems?
Acoustic Glass Systems are complete, engineered glazing solutions that combine high-performance acoustic glass panels, matching acoustic doors, and precision framing components into a unified, sound-rated enclosure. Unlike standalone glass panels or doors, a system is designed holistically—every joint, seal, and transition is optimized to achieve a target STC rating for the entire assembly. These systems are the preferred choice for pod manufacturers, contractors, and architects who require a single-source, drop-in acoustic solution for office pods, meeting rooms, and interior partitions.
(Word count: ~85 – 30 秒可读完)
03 – Glass Structure
H2: System Components & Glass Structure
A complete Acoustic Glass System integrates three core elements:
1. Acoustic Glass Panels (Walls)
6 mm Tempered Glass
↓
Acoustic PVB Interlayer (0.76–1.52 mm)
↓
6 mm Tempered Glass
Or insulated build: 6T + 16Ar + 8T (STC 42–45)
2. Acoustic Glass Door
6 mm Tempered Glass
↓
Acoustic PVB Interlayer (1.14 mm)
↓
6 mm Tempered Glass
With CNC hinge cut-outs, lock boreholes, and drop seals
3. Framing & Sealing System
- Aluminum or steel profiles with acoustic gaskets
- Perimeter seals, head seals, and threshold transitions
- Adjustable jambs for on-site tolerance compensation
- Key Structural Variables:
- Panel Glass: Laminated or insulated, thickness 12–38 mm
- Door Glass: Laminated standard, insulated optional
- Framing: Minimal visible frame (≤ 25 mm sightline) or full-frame
- Seals: EPDM / silicone gaskets at all joints
04 – Available Configurations
H2: Available Configurations
| System Type | Panel Glass | Door Glass | Overall STC* | Typical Application |
|---|
| Standard Pod System | 6+PVB+6 (12 mm) | 6+PVB+6 | STC 38–42 | Phone Booth / Solo Pod |
| Office Pod System | 8+PVB+8 (16 mm) | 8+PVB+8 | STC 42–45 | Office Pod / Focus Room |
| Meeting Pod System | 6+16Ar+8 (30 mm IGU) | 8+PVB+8 | STC 45–48 | Meeting Pod / Huddle Room |
| Executive System | 6+PVB+6+16Ar+8 (38 mm) | 8+PVB+8 | STC 48–52 | Executive Pod / Boardroom |
| Custom System | Project-specific | Project-specific | Specified | OEM / Architectural
*System STC is indicative and measured per ASTM E90 / ISO 10140 for the complete assembly including panels, door, and framing. Field performance may vary based on installation. |
设计意图：用一张表覆盖系统级变体，避免拆成多个薄内容页面，保持与 Products 下其他配置页的层级一致。
05 – Acoustic Performance
H2: Acoustic Performance
- System STC: 42 – 52 (depending on configuration)
- Rw (EN ISO 717-1): Up to 50 dB
- Frequency Range: Optimized for 500 Hz – 4000 Hz (speech frequencies)
- Test Standards: ASTM E90, EN ISO 10140, ISO 717-1
- Performance Data: Available in downloadable brochure (includes lab-tested reports for complete system builds)
强调"System STC"与单块玻璃 STC 的区别，引导下载 Brochure 获取整体测试数据。
06 – Safety Performance
H2: Safety & Compliance
- Impact Safety: Panels classified Class A / B (EN 12600), ANSI Z97.1 Cat II
- Door Safety: Laminated glass fragments remain bonded upon breakage
- Tempered Glass: Heat-treated 4–5× strength vs. annealed
- Optional Heat Soak: EN 14179-1 to minimize spontaneous breakage
- Fire Rating: Optional fire-rated framing systems (EW 30/60 on request)
- Compliance: CE, UKCA, ANSI, AS/NZS 2208
07 – Specifications
H2: Technical Specifications
| Parameter | Details |
|---|
| Panel Glass Type | Acoustic Laminated / Insulated / Laminated Insulated |
| Door Glass Type | Acoustic Laminated (standard), Insulated (optional) |
| Panel Thickness | 12 mm – 38 mm |
| Door Thickness | 12 mm – 16 mm |
| Max Panel Size | Up to 1200 mm × 3000 mm (jumbo on request) |
| Max Door Size | 1000 mm × 2400 mm |
| Framing Material | Aluminum / Steel |
| Framing Finish | Powder coat / Anodized / Custom RAL |
| Seals | EPDM / Silicone gaskets |
| Hardware | Hinges, locks, closers (template per spec) |
08 – Applications
H2: Typical Applications

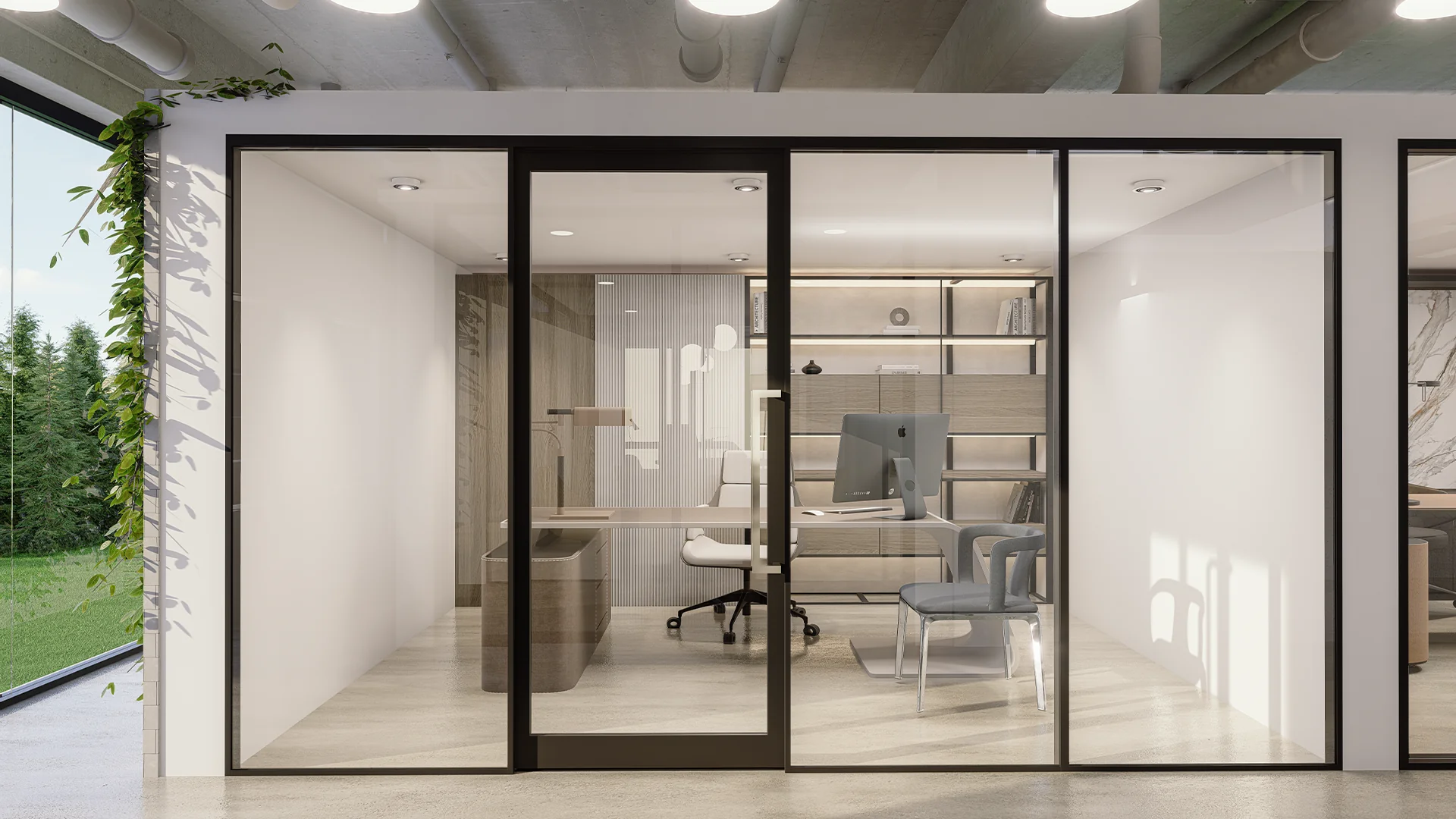

- Office Pods – Complete acoustic enclosures for focused work (link → Applications/Office Pods)

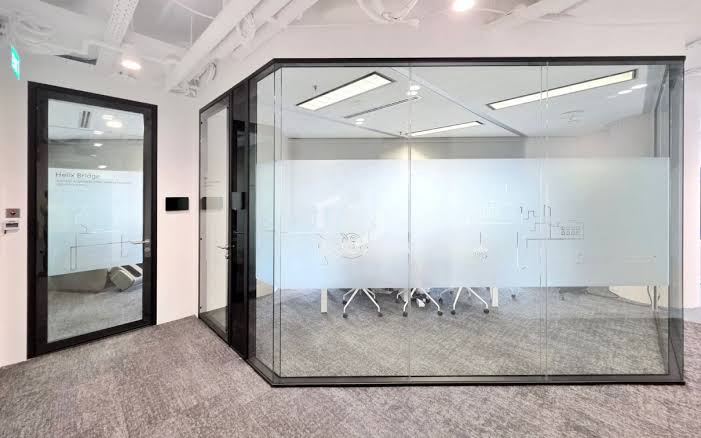

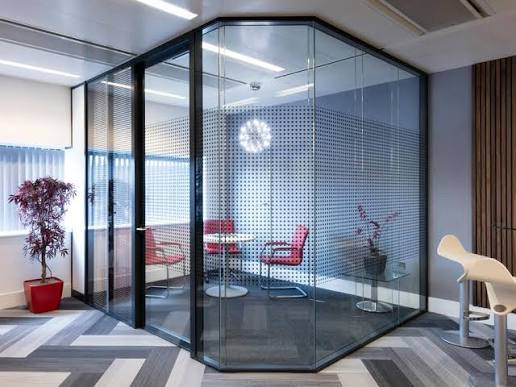

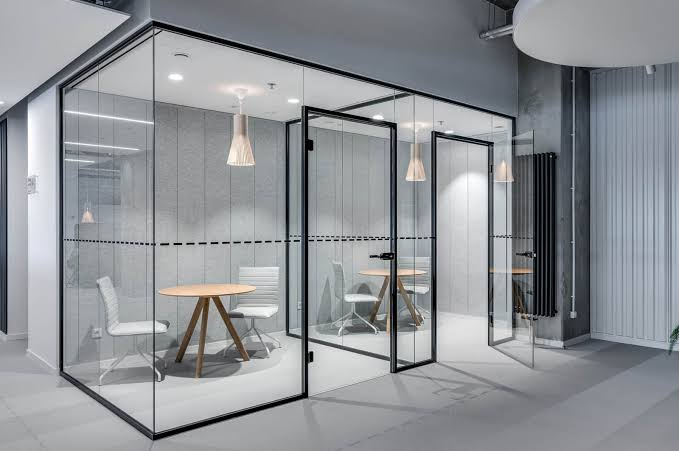

- Meeting Pods – Small to medium conference rooms with integrated glass walls and doors (link → Applications/Meeting Pods)
- Phone Booths – Compact acoustic cabins (link → Applications/Phone Booths)
- Recording Booths – Voice-over and podcast studios (link → Applications/Recording Booths)

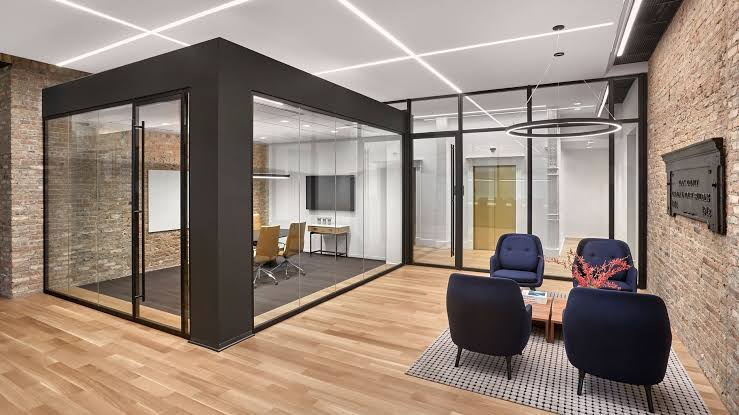

- Architectural Partitions – Full-height acoustic glass wall systems in open-plan offices
09 – Customization
H2: Customization & OEM Options
We engineer complete systems to your specification:
- System Design: Custom panel layouts, door configurations, and framing profiles
- Glass Options: Low-Iron, tinted, reflective, silk-screen, frosted
- Framing: Minimal sightline, full-frame, or frameless options
- Hardware Integration: Hinges, locks, closers per your template (Assa Abloy, Dormakaba, etc.)
- Acoustic Target Matching: We work with your engineering team to hit a specific system STC
- OEM Packaging: Panels, doors, and framing crated separately with clear labeling and assembly guides
- Project Support: Shop drawings, installation guides, and on-site technical assistance
10 – Testing & Certifications
H2: Testing & Certifications
- Acoustic Testing: ASTM E90, EN ISO 10140 series (complete system tests)
- Safety Glass: CE (EN 14449), UKCA, ANSI Z97.1, AS/NZS 2208
- Factory Certification: ISO 9001:2015
- Third-Party Verification: SGS, Intertek (on request)
- Document Package: System test reports, declarations of performance, installation manuals
11 – Manufacturing Capability
H2: Why Source From Us?
- 20+ Years in tempered, laminated, and IGU manufacturing
- Dedicated Acoustic Line – separate production for cross-contamination control
- System Engineering Team – in-house designers for panel, door, and framing integration
- Jumbo Capability – panels up to 2440 × 5000 mm
- Precision CNC – hinge cut-outs, lock boreholes, and framing components with ±0.5 mm tolerance
- Export Experience – served 30+ countries, Incoterms, ocean freight packaging, customs docs
- Fast Sampling – prototype system components ready in 10–14 days
12 – RFQ (Request for Quotation)
H2: Send Your System Specification
Ready to get pricing for your acoustic glass system project?
Please provide:
- System type (e.g., Meeting Pod System, Executive System)
- Panel layout (dimensions, quantity, glass build-up)
- Door requirements (size, glass, hardware template)
- Framing preferences (material, finish, sightline)
- Acoustic target (system STC or Rw)
- Delivery destination & Incoterm
