Acoustic laminated glass vs double glazing (IGU): STC, thickness, cost, weight, safety & installation compared. Learn which acoustic glass suits office pods, booths & partitions. Request a quote.
Acoustic Laminated Glass vs Double Glazing – Which Is Right for Your Project?
## 01 – Hero
**H1:** Acoustic Laminated Glass vs Double Glazing – Which Is Right for Your Project?
**Subheading:** A Side-by-Side Engineering Comparison of STC, Thickness, Cost, Weight, Safety & Installation — to Help You Specify the Right Acoustic Glass
**Key Specs Badge:** STC 39–50 ｜ 12–38 mm ｜ Weight vs Performance ｜ Decision Matrix ｜ OEM
**CTA Buttons:** [Request a Quote] [Download Comparison Datasheet]
## 02 – Why This Comparison Matters
**H2:** Why This Comparison Matters
When sourcing acoustic glass for an office pod, meeting room, phone booth, or partition wall, buyers almost always arrive at the same fork in the road:
> **Do I use acoustic laminated glass, or do I use a double-glazed IGU?**
The confusion is understandable — both solutions deliver sound insulation, both use tempered glass, and both can hit a similar STC range on paper. But the way they achieve that performance, and the constraints they place on your design, are fundamentally different.
- **Acoustic laminated glass** controls noise through **viscoelastic damping** in the PVB interlayer — it works by turning vibration into heat.
- **Double glazing (IGU)** controls noise through a **mass-spring-mass** system — it works by separating two panes with an air or gas cavity.
Neither is "better" in the abstract. The right choice depends on your **thickness budget, weight limit, safety requirement, thermal need, and target frequency**.
*(Word count: ~80 — 30 秒可读完)*
---
## 03 – Quick Answer (Executive Summary)
**H2:** Quick Answer — Which Should You Choose?
| Situation | Recommended Choice |
|-----------|-------------------|
| Thickness / space is tight (booth, pod door, retrofits) | **Acoustic laminated glass** |
| Weight is critical (mobile / demountable / ceiling-suspended) | **Acoustic laminated glass** |
| Safety + post-breakage retention is mandatory | **Acoustic laminated glass** |
| Budget is the primary constraint | **Acoustic laminated glass** (typically lower cost) |
| You also need thermal insulation / condensation control | **Double glazing (IGU)** |
| Low-frequency noise is the main problem (< 500 Hz, HVAC, traffic) | **Double glazing (IGU)**, wider cavity |
| Target STC is 48+ in a fixed, heavy build | **Double glazing or composite** |
| Maximum speech privacy in a premium sealed pod | **Composite (laminated + IGU)** |
> **Bottom line:** If you only remember one thing — **laminated wins on thin / light / safe / cheap; IGU wins on low-frequency and thermal.** For the highest performance, combine them.
---
## 04 – How Each Technology Works
**H2:** How Each Technology Works
### Acoustic Laminated Glass — Damping
Two or more tempered lites bonded with a **viscoelastic acoustic PVB interlayer** (0.76 / 1.14 / 1.52 mm). When sound hits the glass, the PVB absorbs vibrational energy and converts it to negligible heat. The interlayer also:
- Decouples the two lites (breaks vibration transfer)
- Extends and flattens the **coincidence dip**
- Adds 3–8 STC points over standard PVB laminated glass
👉 Full原理见 [Acoustic PVB & Acoustic Laminated Glass Technology](/acouspace/technology/acoustic-pvb-and-acoustic-laminated-glass-technology/)
### Double Glazing (IGU) — Mass-Spring-Mass
Two glass lites separated by a **spacer + air/gas cavity** (typically 12–20 mm). The cavity acts as a spring between two masses; sound energy is dissipated across the resonance of the system.
- Cavity width is the dominant acoustic variable (16 mm argon = sweet spot)
- Asymmetric panes (6 + 8 mm) prevent a single coincidence dip
- Argon fill adds ~1–2 STC + significant thermal benefit
👉 Full原理见 [Double Glazing for Acoustics](/acouspace/technology/double-glazing-for-acoustics/)
> **The key physical difference:** Laminated adds **damping** (energy loss per unit of thickness). IGU adds **decoupling distance** (cavity depth). They solve the same problem through different mechanisms — which is why combining them (composite) is so effective.
---
## 05 – Side-by-Side Comparison Table
**H2:** Acoustic Laminated Glass vs Double Glazing — Full Comparison
| Parameter | Acoustic Laminated Glass | Double Glazing (IGU) |
|-----------|------------------------|---------------------|
| **Working principle** | Viscoelastic PVB damping | Mass-spring-mass (cavity) |
| **Structure** | 6 + 1.14PVB + 6 | 6 + 16Ar + 8 |
| **Overall thickness** | **12–17 mm** | **24–38 mm** |
| **Typical STC range** | **STC 39–45** | **STC 43–50** |
| **Low-frequency control (<500 Hz)** | Moderate | **Stronger (with wide cavity)** |
| **Speech band (500–4000 Hz)** | **Excellent** | Excellent |
| **Coincidence control** | **Very good** (damping + asymmetry) | Good (asymmetry required) |
| **Weight (per m², typical)** | **~30–40 kg/m²** | **~40–55 kg/m²** |
| **Thermal (U-value)** | Baseline (single glazing) | **U 1.2–2.8 W/m²K** |
| **Condensation control** | No | **Yes** |
| **Safety / post-breakage** | **Excellent** (PVB retention) | Good (tempered lites) |
| **Thickness / profile pocket** | **Fits slim frames** | Requires deeper pocket (24–38 mm) |
| **Max panel size** | Up to 2440 × 5000 mm (jumbo) | Up to 2440 × 5000 mm (jumbo) |
| **Relative cost** | **Baseline (lower)** | +20–40% |
| **Lead time** | Standard | Standard (sealed-unit process) |
| **Retrofit friendliness** | **High** | Lower (needs deeper frame) |
| **Best frequency range** | Speech (500–4000 Hz) | Broadband, esp. low freq |
| **Composite potential** | Can be one lite of IGU | Pairs with laminated lite |
---
## 06 – STC Comparison by Build
**H2:** STC Comparison by Build (Indicative*)
| Build | Overall Thickness | Indicative STC* |
|-------|------------------|-----------------|
| 5 + 0.76PVB + 5 (laminated) | 10.76 mm | STC 38–40 |
| 6 + 1.14PVB + 6 (laminated) | 12.76 mm | **STC 41–43** ← most common |
| 8 + 1.52PVB + 8 (laminated) | 16.76 mm | STC 43–45 |
| 6 + 12Air + 6 (IGU, narrow) | 24 mm | STC 39–41 |
| **6 + 16Ar + 8 (IGU, asymmetric)** | **30 mm** | **STC 43–46** ← standard IGU |
| 8 + 16Ar + 10 (IGU, asymmetric) | 34 mm | STC 46–48 |
| 6+PVB+6 + 16Ar + 8 (composite) | 38 mm | STC 48–52 |
*\*Indicative glass-only ratings per ASTM E90 / ISO 10140. Final system STC depends on frame, seals, door, and installation. STC is not additive — see [STC Rating & Rw Rating](/acouspace/technology/stc-rating-and-rw-rating/).*
> **Critical reading tip:** Notice that a **12.76 mm laminated** (STC 41–43) and a **30 mm IGU** (STC 43–46) deliver similar speech-band performance. The IGU buys you only ~3 STC for more than **double the thickness and weight**. That is the trade-off in a nutshell — and why laminated is so often the smarter choice.
---
## 07 – Thickness, Weight & Cost Trade-off
**H2:** The Thickness–Weight–Cost Triangle
This is the decision every pod manufacturer actually makes:
```
High Performance (STC 48+)
Composite (thick + heavy)
/ \
IGU (thick) \
/ \
Laminated (thin) (not recommended:
/ \ triple glazing
/ \ for thin build)
Thin + light Thin + safe
+ budget + standard
```
**Rule of thumb:**
- **+6 mm thickness ≈ +30% weight ≈ +15–20% cost** (roughly)
- IGU at 30 mm is **~2.5× the thickness** of standard 12.76 mm laminated
- For a typical pod door (0.9 × 2.1 m), the glass mass difference is **~20–30 kg** — meaningful for hinges and door-drop seals
> **Procurement insight:** If your frame, hinges, or door-closing mechanism was designed around 12–17 mm glass, switching to IGU means re-engineering the entire door system. Laminated drops in without changes.
---
## 08 – Decision Matrix (Choose by Priority)
**H2:** Decision Matrix — What Matters Most to You?
| Priority #1 | Winner | Why |
|-------------|--------|-----|
| Minimum thickness | **Laminated** | 12–17 mm vs 24–38 mm |
| Minimum weight | **Laminated** | ~30–40 vs ~45–55 kg/m² |
| Lowest cost | **Laminated** | 20–40% cheaper than IGU |
| Safety / retention | **Laminated** | PVB holds fragments |
| Thermal / HVAC noise | **IGU** | Cavity + argon + U-value |
| Low-frequency noise | **IGU** | Mass-spring resonance control |
| STC 48+ target | **Composite** | Laminated + IGU together |
| Easy retrofit | **Laminated** | Fits existing slim frames |
| Condensation control | **IGU** | Sealed insulating unit |
**If you have 2+ priorities pointing to laminated → specify laminated.
If 2+ point to IGU → specify IGU.
If your target is STC 48+ or you need both thermal and acoustic → go composite.**
---
## 09 – Application Recommendations
**H2:** Recommended Choice by Application
| Application | Recommended | Typical Build | Why |
|-------------|-------------|---------------|-----|
| **Phone Booth** | **Laminated** | 5+0.76PVB+5 / 6+1.14PVB+6 | Thin walls, light door, budget |
| **Office Privacy Booth** | **Laminated** | 6+1.14PVB+6 | Full-height door, slim profile |
| **Office Pod (standard)** | **Laminated** | 6+1.14PVB+6 or 8+1.52PVB+8 | Best value STC 41–45 |
| **Work Pod** | **Laminated** or IGU | 6+1.14PVB+6 / 6+16Ar+8 | Depends on HVAC noise |
| **Meeting Pod** | **IGU** or Composite | 6+16Ar+8 / composite | Higher occupancy, more sound energy |
| **Boardroom / Executive** | **Composite** | 6+PVB+6+16Ar+8 | STC 48+, premium |
| **Recording Booth** | **Composite** | Laminated + IGU | Full-frequency, maximum privacy |
| **Podcast Booth** | **IGU** or Composite | 6+16Ar+8 / composite | Low-frequency voice fundamentals |

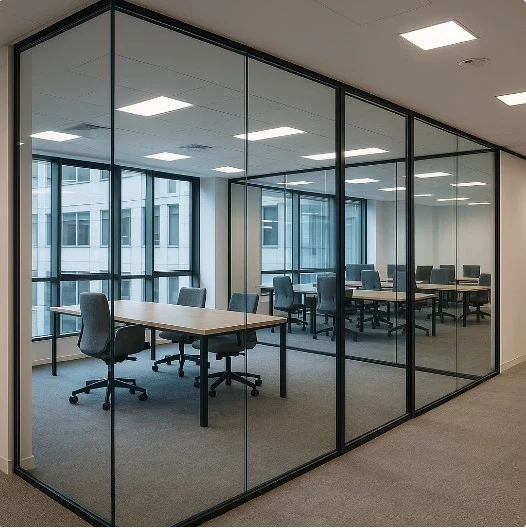

| **Partition Wall** | **Either** | Laminated or IGU | IGU if thermal zone separation needed |
| **Perimeter office (HVAC noise)** | **IGU** | 6 Low-E + 16Ar + 8 | Thermal + acoustic combined |
> **SEO 逻辑:** 每个应用锚文本指向对应 Applications 页（下游分流），不在本页展开场景内容，保持栏目职责纯净。
---
## 10 – Common Myths & Clarifications
**H2:** Common Myths — Debunked
**Myth 1: "Double glazing is always better than laminated."**
False. At speech frequencies, a well-designed 12.76 mm acoustic laminated (STC 41–43) matches a basic 24 mm air-filled IGU. IGU only pulls ahead with wider cavities and asymmetry — at the cost of thickness and weight.
**Myth 2: "Two panes of glass = double glazing."**
Not necessarily. Two lites bonded with PVB = laminated (no cavity, no IGU). A true IGU requires a **spacer, sealed cavity, and gas fill**. Don't let a supplier call laminated glass "double glazing."
**Myth 3: "Thicker glass always means higher STC."**
Mass helps, but the **mechanism matters**. A 17 mm laminated can outperform a 24 mm monolithic lite because of PVB damping. STC is not a simple function of thickness.
**Myth 4: "STC from glass alone = pod STC."**
No. Frame, seals, door, and ceiling transitions dominate the final 3–6 STC points. Glass STC is necessary but not sufficient — see [STC Rating & Rw Rating](/acouspace/technology/stc-rating-and-rw-rating/).
**Myth 5: "IGU always needs argon for acoustics."**
No. Argon's acoustic contribution is only ~1–2 STC. Its real value is **thermal**. For purely acoustic indoor pods, air-filled IGU is acceptable; argon is justified when U-value matters.
---
## 11 – Manufacturing & Quality (JUMBO Glass Group)
**H2:** Manufactured by JUMBO Glass Group
Whichever route you choose, both products are manufactured on the same integrated production platform:
- **20+ years** in tempered, laminated & IGU manufacturing
- **Three production bases** (Gevergel Engineering Glass + Shunzhifa Glass + modern jumbo line)
- **Jumbo capability:** flat tempered 3300×20000mm · laminated 3300×18000mm · IGU 3300×13000mm
- **Dedicated acoustic PVB laminating room** + humidity-controlled IGU chamber
- **CNC machining:** hinge / lock / cut-out tolerance ±0.5 mm
- **IGU:** warm-edge spacer, dual-seal, EN 1279 / ASTM E2190, 20-year seal warranty
- **Compliance:** EN 12150, EN 14449, EN 14179, ANSI Z97.1, AS-NZS 2208, CE, CCC, ISO 9001:2015
- **Lead time:** samples 10–14 days; bulk 25–35 days FOB
- **Export:** serving 100+ countries, seaworthy crating with EVA edge guard
> The advantage of sourcing both laminated and IGU from one manufacturer: **consistent acoustic PVB supply, matched tolerances, and a single accountable supplier** for your complete glazing package.
---
## 12 – FAQ
**H2:** Frequently Asked Questions
1. **Which is better for soundproofing — laminated or double glazing?**
Neither is universally better. Laminated is better for thin / light / safe / budget builds (STC 39–45). IGU is better for low-frequency noise and thermal control (STC 43–50). For STC 48+, use composite.
2. **Can I get STC 45 from laminated glass?**
Yes — 8+1.52PVB+8 asymmetric laminated reaches STC 43–45, matching many IGU builds at half the thickness.
3. **Is double glazing worth the extra thickness?**
Only if you need low-frequency control, thermal insulation, condensation control, or STC 46+. Otherwise laminated is more cost-effective.
4. **Can laminated and IGU be combined?**
Yes — this is the **composite** build (e.g., 6+PVB+6 + 16Ar + 8), reaching STC 48–52. See [Acoustic Laminated Insulated Glass](/acouspace/products/acoustic-glass/acoustic-laminated-insulated-glass/).
5. **Which is safer on breakage?**
Laminated — the PVB interlayer holds fragments in place. This is why it is preferred for doors and overhead glazing.
6. **Which costs less?**
Acoustic laminated glass is typically 20–40% cheaper than an equivalent-performance IGU.
7. **Does argon fill improve acoustics significantly?**
Only ~1–2 STC. Argon's main benefit is thermal (U-value). For indoor-only pods, air-filled IGU is acoustically acceptable.
8. **Can I retrofit IGU into a laminated-glass frame?**
Usually no — IGU needs a 24–38 mm profile pocket vs. 12–17 mm for laminated. Retrofitting means re-engineering the frame.
9. **Which should I use for a recording booth?**
Composite (laminated + IGU) for full-frequency control and STC 48+. See [Acoustic Glass for Recording Booths](/acouspace/applications/acoustic-glass-applications/recording-booths/).
10. **How do I choose between them for my project?**
Use the [Decision Matrix](#section-08-decision-matrix-choose-by-priority) above, or send us your target STC, thickness limit, and thermal requirement — we will specify the optimal build.
---
## Final CTA
**H2:** Still Not Sure Which Acoustic Glass You Need?
Send us your project requirement — target STC, available thickness, weight limit, and whether you need thermal control. Our engineering team will compare laminated vs IGU for your exact case and recommend the optimal build.
[Request a Quote] [Download Comparison Datasheet] [Send Your Drawing]
---
## 🔗 内部链接组（Topic Cluster）
### 下游 → Products（对比两方锚文本均已嵌入）
- [Acoustic Laminated Glass](/acouspace/products/acoustic-glass/acoustic-laminated-glass/)
- [Acoustic Insulated Glass](/acouspace/products/acoustic-glass/acoustic-insulated-glass/)
- [Acoustic Laminated Insulated Glass](/acouspace/products/acoustic-glass/acoustic-laminated-insulated-glass/)（composite）
- [Low-E Acoustic Glass](/acouspace/products/acoustic-glass/low-e-acoustic-glass/)
- [Custom Acoustic Glass](/acouspace/products/acoustic-glass/custom-acoustic-glass/)
### 同级 Technology（双向 — 对比决策枢纽）
- [STC Rating & Rw Rating](/acouspace/technology/stc-rating-and-rw-rating/)
- [Acoustic PVB & Acoustic Laminated Glass Technology](/acouspace/technology/acoustic-pvb-and-acoustic-laminated-glass-technology/)
- [Double Glazing for Acoustics](/acouspace/technology/double-glazing-for-acoustics/)
- [Acoustic SGP Interlayer](/acouspace/technology/acoustic-sgp-interlayer/)
- [Acoustic Glass Testing](/acouspace/technology/acoustic-glass-testing/)
- [Triple Glazing for Acoustics](/acouspace/technology/triple-glazing-for-acoustics/)
### 下游 → Applications（选型分流）
- [Acoustic Glass for Phone Booths](/acouspace/applications/acoustic-glass-applications/phone-booths/)
- [Acoustic Glass for Privacy Booths](/acouspace/applications/acoustic-glass-applications/office-privacy-booths/)
- [Acoustic Glass for Work Pods](/acouspace/applications/acoustic-glass-applications/work-pods/)
- [Acoustic Glass for Meeting Pods](/acouspace/applications/acoustic-glass-applications/meeting-pods/)
- [Acoustic Glass for Recording Booths](/acouspace/applications/acoustic-glass-applications/recording-booths/)
- [Acoustic Glass for Podcast Booths](/acouspace/applications/acoustic-glass-applications/podcast-booths/)
- [Acoustic Glass Partitions](/acouspace/applications/acoustic-glass-applications/acoustic-glass-partitions/)
### 反向（Products / Applications 页底部应加）
> Technology: Acoustic Laminated Glass vs Double Glazing · STC Rating · Acoustic PVB · Double Glazing · Acoustic Testing
Subscribe To Our Newsletter To Get Our Update News!
Copy Right © 2026 Jumbo Glass Group
