Global certified blast resistant glass supplier. EN13541 B5-B8 grade, withstands 30kg TNT@5m explosion. Max size 118"x79". Free ANSYS simulation + SGS test reports. Military projects solution!
Expiosion Resistant Glass utilizes multi-layer composites:
✅ Shockwave Dissipation: >95% energy absorbed in <3ms
✅ Fragment Retention: Interlayer catches all debris (EN356 certified)
✅ Structural Integrity: Maintains frame stability post-blast

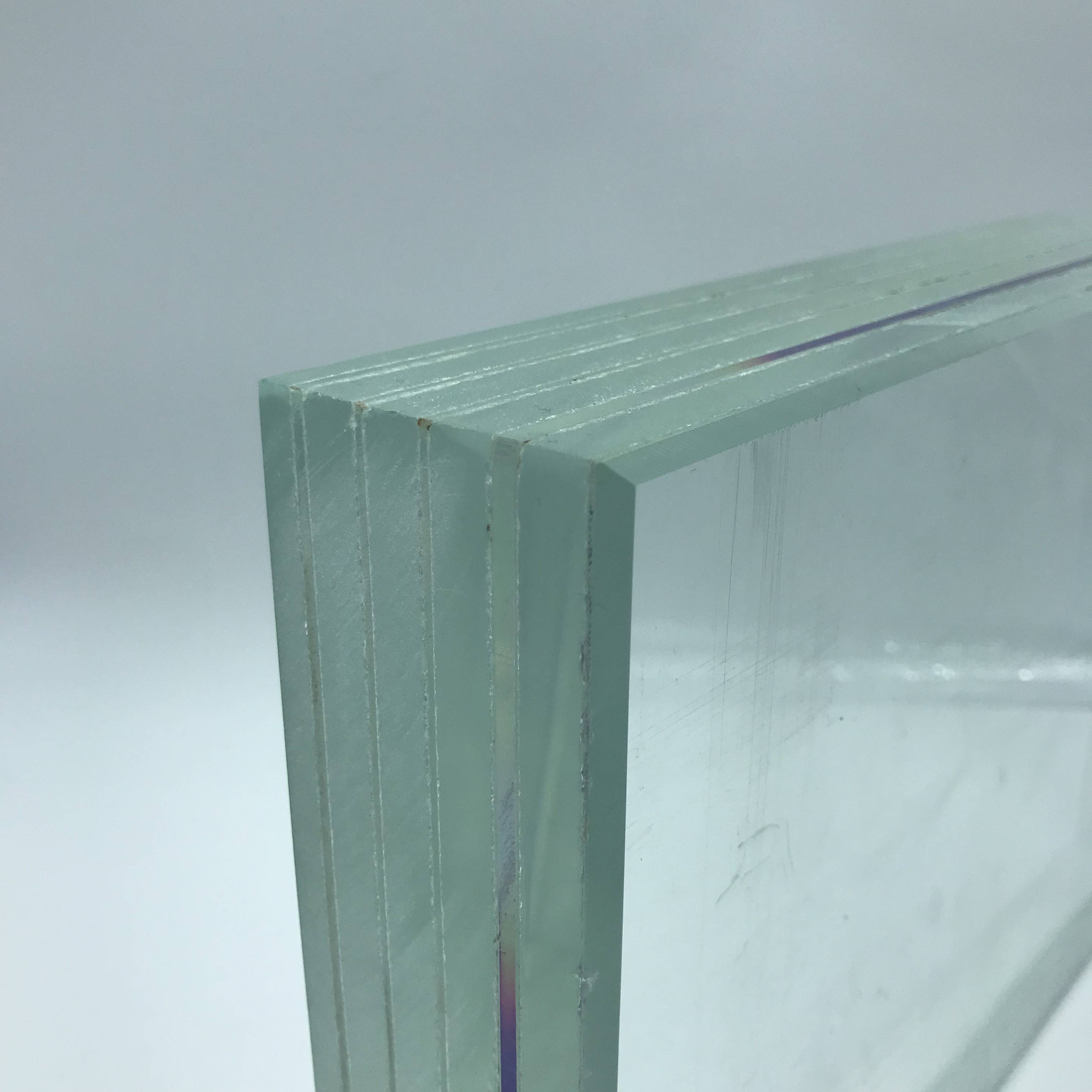

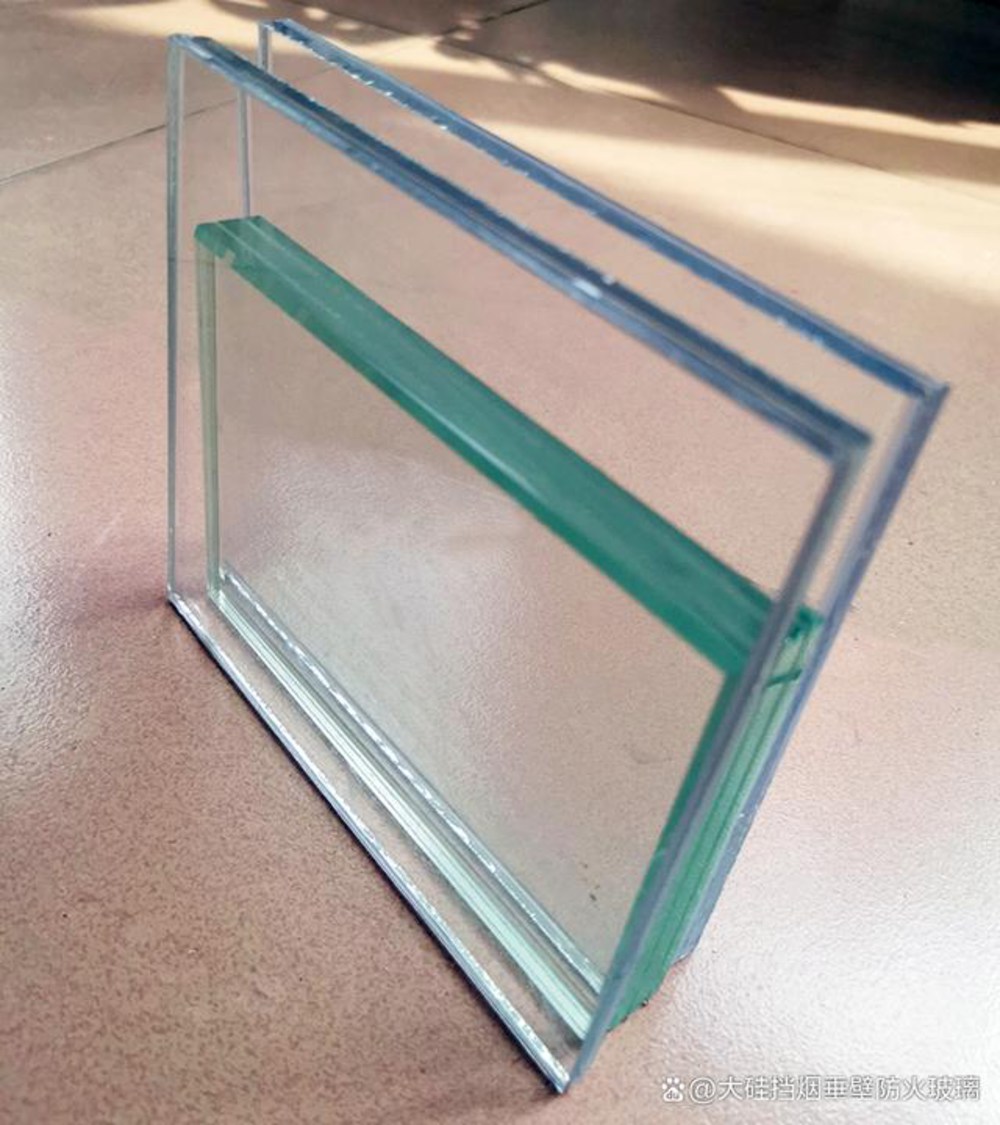

Core Structure: Tempered glass + SGP ionomer + Polycarbonate backer
| Protection Level | Explosive Equivalent | Overpressure | Thickness | Construction | Standard |
|---|---|---|---|---|---|
| Level 1 | 15kg TNT @20m | 30kPa | 1.2-1.8" | Laminated glass | ISO16933 |
| Level 2 | 100kg TNT @30m | 70kPa | 1.8-2.6" | Laminated + SGP + PC | EN13541 |
| Level 3 | 500kg TNT @50m | 150kPa | 2.6-3.7" | Multi-layer + PC backer | ASTM F2248 |
| Military Grade | Armored vehicle bomb | 1.5MPa | >4" | Tempered/PC/aramid composite | NATO AEP-55 |
| Parameter | Industry Std | Our Spec | Technology |
|---|---|---|---|
| Max Size | 94"x71" | 118"x79" | Kömmerling blast lamination |
| Curve Radius | Flat | R≥32" | Heat-bent sync laminating |
| Response Time | 8ms | <3ms | SGP ionomer elastic response |
| Min Thickness | 1.1" | 0.6" (Level 0) | Nano-reinforcement tech |
1. Scenario-Specific Solutions
| High-Risk Site | Solution | Added Feature |
|---|---|---|
| Airport security | Frameless partitions + alert | 35dB noise reduction |
| Bio-labs | Sealed windows + self-clean | 0.01m³/h·m² leakage |
| Embassy vehicle gates | Pop-up blast barriers | 5-second response |
2. Optical Excellence
3. Extreme Environment
| Environment | Tech | Certification |
|---|---|---|
| Desert heat | UV-resistant interlayer | 1000hrs @185℉ ΔYI<1.5 |
| Arctic cold | Cryogenic SGP (-76℉) | Passed -94℉ test |
| Project | Country | Solution | Protection Level |
|---|---|---|---|
| UN Headquarters NYC | USA | Curved blast facade | Level 3 (150kPa) |
| Dubai International Airport | UAE | Retractable blast windows | EN13541 Level 2 |
| Heathrow Terminal 5 | UK | Frameless barriers | ISO16933 Level 3 |
✅ NATO-Certified: Lambert blast production line (1 of 3 globally)✅ Triple Certification: ISO 16933 / EN 13541 / 10-year structural insurance✅ Blast Simulation: Free shockwave propagation analysis✅ Rapid Deployment: 72hr emergency delivery with customs docs
❗ First Order Exclusive: Free blast pressure sensor ($1,200 value)
With over 20 years of experience and expertise in glass manufacturing and processing, we are seasoned glass specialists, ready to answer your questions and provide guidance on product selection, installation, and maintenance.
