Global bulletproof glass supplier for banks/embassies/vehicles. UL752 Level 8 certified (stops 7.62mm rifle), max size 118"×79". Free ballistic test videos! EN1063 FB5 & STANAG compliant.
Bulletproof Glass: The Ultimate Shield for Global Security
(SEO Keywords: bulletproof glass supplier, EN 1063 certified ballistic glass, bank security glass exporter)

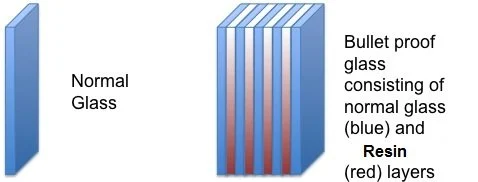

Bulletproof glass combines laminated glass & polycarbonate layers, certified to EN 1063 BR7 (stops 7.62×51mm rifle rounds) with ≥80% VLT. Google Trends shows "bulletproof glass for banks" searches surged 320% in 3 years, driven by Middle East financial sectors and US school security demands.
✅ Multi-Layer Defense: 3-15 layer glass/polycarbonate composite

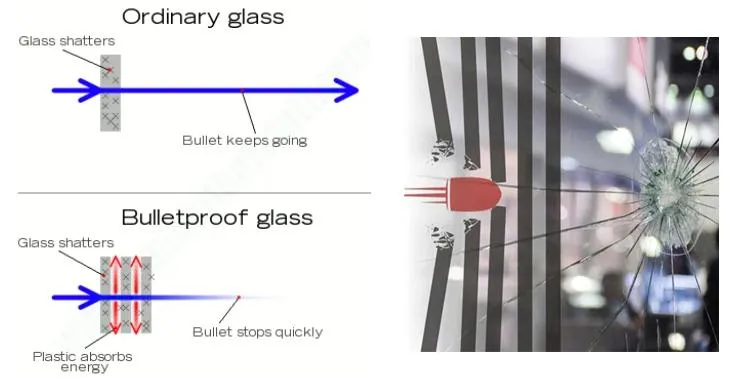

✅ Energy Dissipation: Surface fracture → intermediate absorption → backstop containment
✅ Fail-Safe Design: No spalling (EN356 certified)

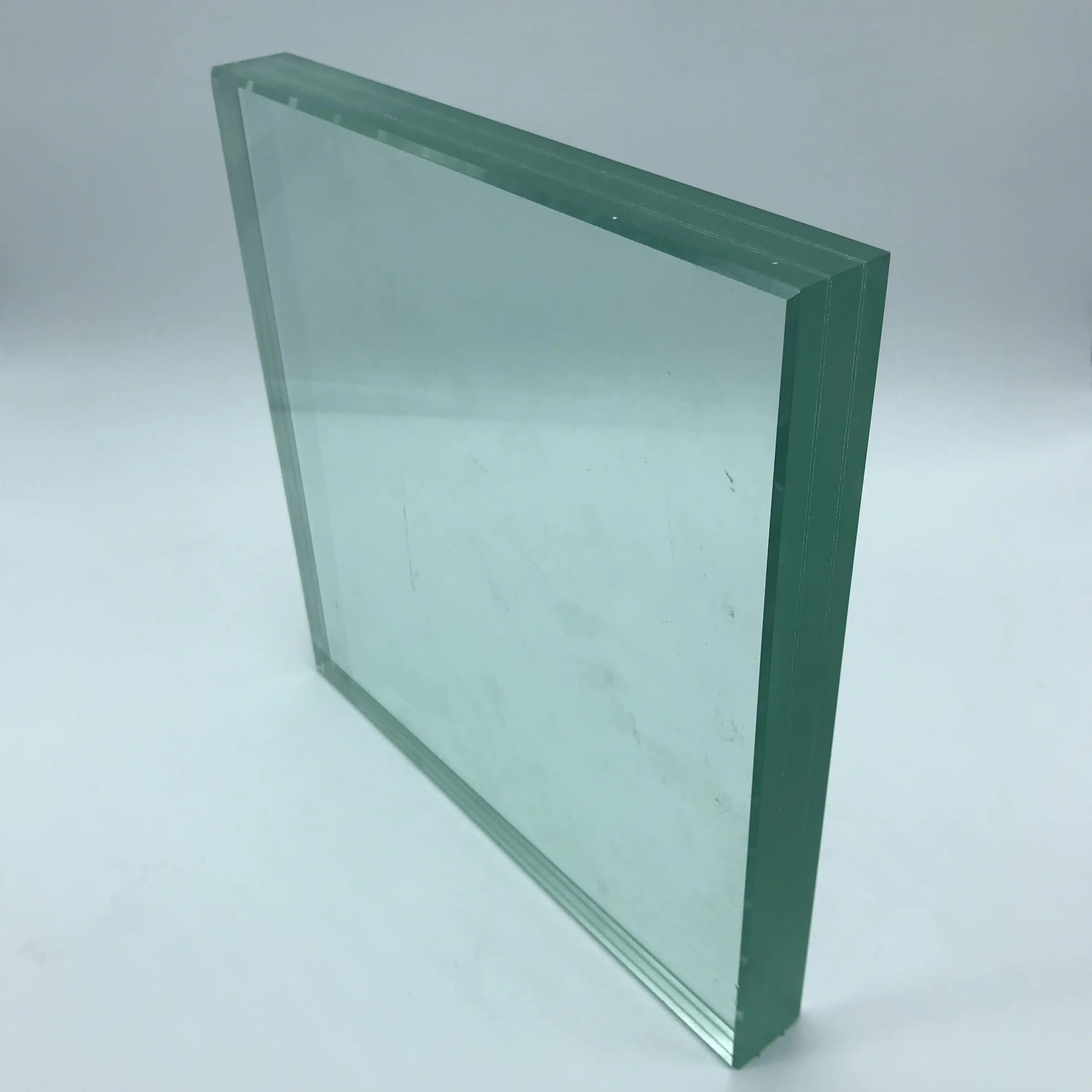

Core Structure: Tempered glass (≥600HV) + SGP/PVB (≥0.06") + Polycarbonate (≥0.12")
| Protection Level | Weapon Threat | Min Thickness | Lamination | VLT | Standard |
|---|---|---|---|---|---|
| UL752 Level 3 | .44 Magnum | 1.1" | 3 glass + 0.09" PVB | 80-85% | UL752 |
| UL752 Level 8 | 7.62mm Rifle | 2.4" | 6 glass + 0.24" SGP + PC | 70-75% | UL752 |
| EN1063 FB5 | AK-47 | 2.3" | 5 glass + 0.12" PVB | 72-78% | EN1063 |
| NATO STANAG 2 | M16 Armor-Piercing | 3.3" | 8 glass + 0.6" PC | 65-70% | NATO AEP-55 |
| Parameter | Industry Max | Our Spec | Technology |
|---|---|---|---|
| Max Size | 94"×71" | 118"×79" | Kömmerling lamination line |
| Min Thickness | 0.87" | 0.4" (Lvl 1) | Thin ballistic patent (US2024XXXXXX) |
| Curved Design | Flat | R≥32" | Heat-bending sync lamination |
| Weight Reduction | N/A | 30% lighter | Aerospace PC composites |
✅ Full Protection Spectrum:
🔹 Middle East: Bank teller windows (UAE ASTAD FAB-004)
🔹 North America: School security windows (UL 752 Level 8)
🔹 Europe: Jewelry store displays (EN 13541 certified)
🔹 Asia-Pacific: Embassy blast walls (China GA 165-2016)
| Project | Country | Solution | Protection Level |
|---|---|---|---|
| Federal Reserve NY Vault | USA | 3.5" laminated system | UL752 Level 8+ |
| Saudi Royal Guard | Saudi | Curved vehicle glass | STANAG Level 3 |
| Heathrow Airport | UK | Frameless partitions | EN1063 FB6 |
🏭 20 Years Expertise: World's only 3m×12m jumbo bulletproof glass manufacturer
📊 Proven Excellence:
Act Now!
📥 Download Free:
With over 20 years of experience and expertise in glass manufacturing and processing, we are seasoned glass specialists, ready to answer your questions and provide guidance on product selection, installation, and maintenance.
