Curtain Wall Vision Glass
Transparent Insulated Glass for the Primary See-Through Zones of Stick & Unitized Curtain Wall Facades – Low-E IGU, Large-Format, Vision/Spandrel Matched

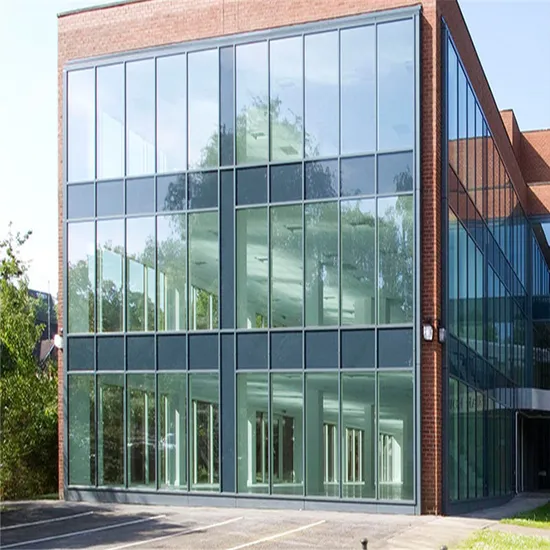

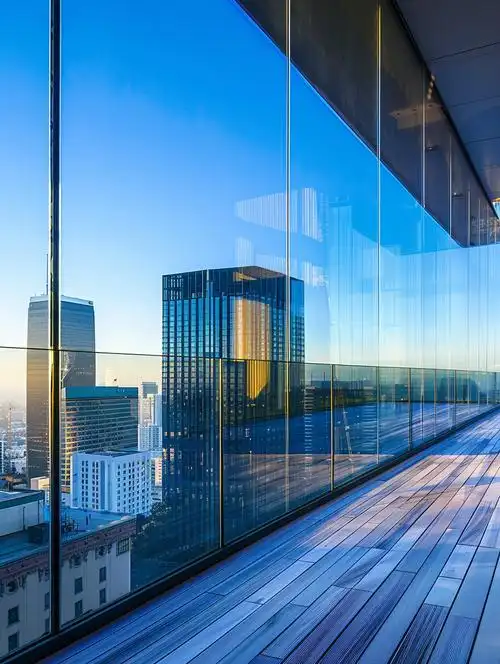

Curtain Wall Vision Glass is the transparent glazed panel used in the vision area of a curtain wall system – the portion of the façade where building occupants and outside viewers see through the glass to the interior or exterior. It is the engineering opposite of Spandrel Glass, which sits between floor slabs to conceal structure, insulation and mechanical floors.
For facade engineers, curtain wall fabricators, glazing contractors, architects and procurement managers supplying commercial towers, unitized façade packages and large-format stick systems in Europe, North America, Australia and the Gulf, vision glass is not "a thickness of glass" – it is a complete IGU make-up carrying the project's thermal, solar, acoustic and aesthetic performance. A procurement manager never specifies "8 mm vision glass"; they specify "8 mm tempered Low-E #2 + 16 mm argon + 8 mm clear tempered, overall 32 mm, U ≤ 1.0, VLT 60 %".
💡 Why vision glass pages must be written differently from storefront/window glass: In curtain wall schedules the word vision is a positional/system term, not a product type. The same 6+16Ar+6 Low-E IGU can be "window glass" in a residential schedule and "vision glass" in a curtain wall schedule – the difference is framing context (stick/unitized vs window sash) and performance tier (commercial façade vs residential). That is why this page leads with configuration → performance → vision/spandrel relationship → jumbo size, not with thickness.
1. Quick Specification (Typical Flagship Make-Up)
| Item | Specification |
|---|
| Configuration | 6 mm Tempered + 16 mm Argon + 6 mm Tempered (6+16Ar+6) |
| Overall Thickness | 28 mm |
| Outer Lite | 6 mm clear tempered, Low-E coating on surface #2 |
| Cavity | 16 mm, Argon 90% |
| Inner Lite | 6 mm clear tempered |
| Spacer | Warm-edge aluminium or TSS |
| U-value (EN 673) | 1.0 W/m²K |
| SHGC | 0.32 |
| VLT | 62% |
| Max Size (Jumbo) | 6000 × 3300 mm |
| Standards | EN 12150, EN 1279, ASTM C1048, ASTM E2190 |

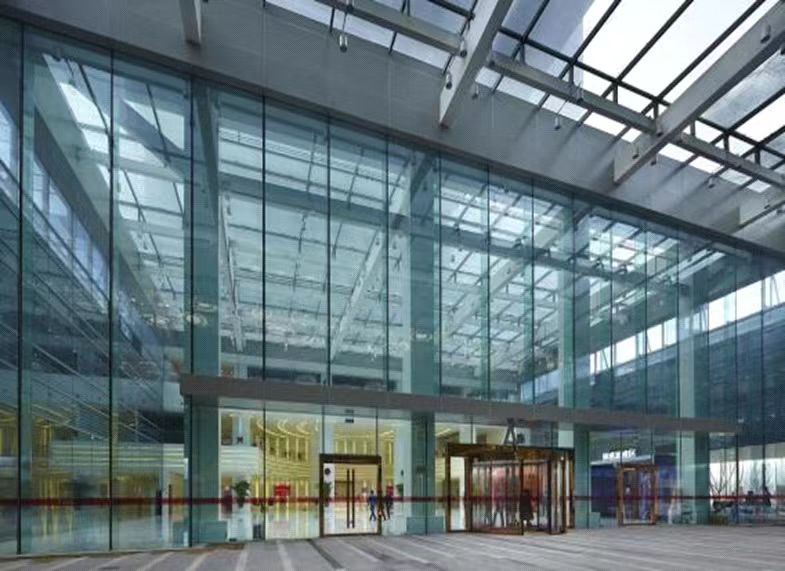

2. What Is Curtain Wall Vision Glass (vs Spandrel)
| Term | Position in Façade | Glass Type | Function |
|---|
| Vision Glass | Transparent zone between spandrels – eye-level & sightlines | IGU (double/triple), Low-E, tinted or reflective optional | Daylight, view, thermal/solar control |
| Spandrel Glass | Opaque band at floor slab / structure | Opaque ceramic frit / back-painted + IGU or monolithic | Conceal slab, ducts, insulation; colour-match vision
Viracon and Guardian both treat vision and spandrel as a matched pair – same Low-E coating family and same base colour are used on both so the façade reads as one continuous surface on overcast days and avoids "read-through". |
3. Why This Glass for Curtain Walls?
- Thermal control – Low-E on surface #2 cuts U-value from ~2.7 (clear double) to 0.8–1.4 W/m²K.
- Solar control – Dual-silver coatings hold VLT 55–70 % while dropping SHGC to 0.25–0.35.
- Daylight & glare balance – Selective coatings keep offices bright without east/west glare complaints.
- Safety at height – Both lites tempered (EN 12150 / ASTM C1048); laminated inner lite optional for fall-out protection.
- Acoustic – 6+16Ar+6 ≈ STC 35–38; upgrade to asymmetric 6+1.52PVB+16Ar+8 → STC 40+.
- Large-format capability – Unitized modules up to 6000×3300 mm, minimising mullion breaks in the vision band.
- Vision/Spandrel continuity – Coating and tint matched to adjacent spandrel frit colour.
4. Common Vision Glass Configurations for Curtain Walls
| Make-Up | Overall | U-value | VLT | SHGC | Use Case |
|---|
| 6+12Ar+6 Low-E | 24 mm | 1.2 W/m²K | 65% | 0.40 | Budget commercial, mild climate |
| 6+16Ar+6 Low-E (dual Ag) | 28 mm | 1.0 W/m²K | 62% | 0.32 | Standard unitized tower |
| 8+16Ar+8 Low-E | 32 mm | 1.0 W/m²K | 60% | 0.30 | High wind-load, larger modules |
| 6+1.52PVB+16Ar+6 Low-E | 29.52 mm | 1.0 W/m²K | 60% | 0.31 | Safety/security vision zones |
| 6+16Ar+6 Triple-Silver Low-E | 28 mm | 0.9 W/m²K | 55% | 0.26 | Premium LEED / passive-house façade |
| 6+12Ar+6+12Ar+6 Low-E (Triple) | 42 mm | 0.6 W/m²K | 50% | 0.25 | Nordic / extreme cold towers
All make-ups can swap outer/inner lite to low-iron, grey/bronze/blue tint, or reflective coating without changing the structural logic. |

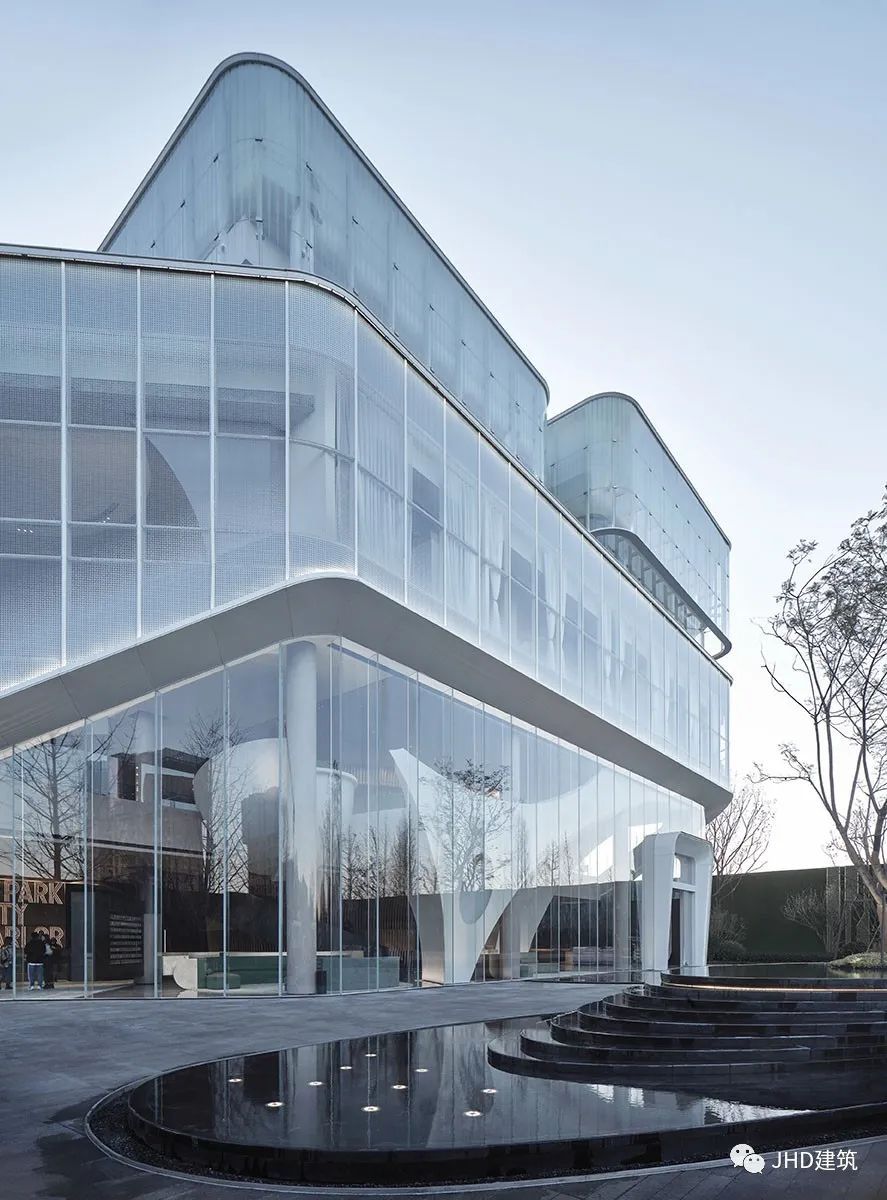

5. Appearance Options (Colour Second, Configuration First)
Per your attachment: configuration > performance > appearance. Reflective/tinted vision glass is where colour earns its SEO keep.
- Clear Low-E Vision Glass – neutral, highest VLT.
- Low-Iron Vision Glass – water-white, for high-end lobbies.
- Grey / Bronze / Blue Tinted Vision IGU – solar control + uniform façade tone.
- Silver / Neutral Reflective Vision Glass – mirror façade, hides interior by day.
- Ceramic Frit Gradient on Vision Edge – matches spandrel, hides frame shadow.
- → See also: Blue Reflective Curtain Wall Glass, Grey Reflective Curtain Wall Glass, Low-E Insulated Curtain Wall Glass

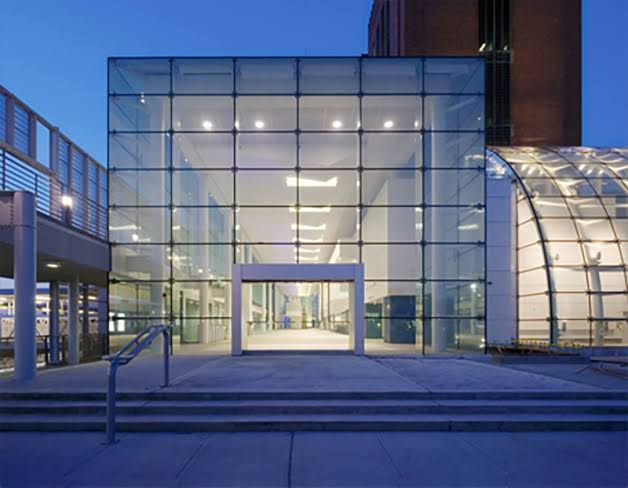

6. Thickness, Size & Jumbo Capability
| Parameter | Standard CW Supplier | Jumbo Glass |
|---|
| Lite thickness | 6 mm / 8 mm | 6–12 mm |
| Max panel (stick) | 3000 × 1500 mm | — |
| Max panel (unitized vision) | 2440 × 1500 mm/module | 6000 × 3300 mm |
| Max IGU overall | 24–32 mm | 24–48 mm |
| Max laminated vision | 13.52 mm | 38 mm
Oversized vision lites reduce vertical joints across the façade – a key reason unitized curtain wall specs request jumbo IGU. |
7. Processing & Fabrication Rules
- Coating side – Low-E almost always on surface #2 (inner face of outer lite) for double IGU.
- Tempering – both lites tempered before IGU assembly (EN 12150 / ASTM C1048).
- Edge deletion – soft-coat Low-E deleted 8–10 mm from edge before sealing.
- Drilling/notching – done on monolithic lites before lamination/tempering, never after IGU.
- Spacer – warm-edge recommended for condensation control at vision glass perimeter.
- Secondary seal – structural silicone compatible with silicone-glazed curtain wall systems.
8. Standards & Compliance
| Standard | Market | Scope |
|---|
| EN 12150 | EU/UK | Tempered safety glass |
| EN 14449 | EU/UK | Laminated safety glass |
| EN 1279 | EU/UK | Insulating glass units |
| EN 673 | EU/UK | U-value calculation |
| EN 1096 | EU/UK | Coated glass |
| ASTM C1048 | USA | Heat-treated glass |
| ASTM C1172 | USA | Laminated glass |
| ASTM C1376 | USA | Coated glass |
| ASTM E2190 | USA | IGU performance |
| AS/NZS 2208 | AU/NZ | Safety glazing
Compliance confirmed per project schedule; curtain wall system approval remains with the façade engineer. |
9. Selection Matrix – Vision Glass by Driver
| Project Driver | Recommended Make-Up | Note |
|---|
| Budget mild-climate office | 6+12Ar+6 single-silver Low-E | U 1.2, VLT 65% |
| Standard city tower (most specs) | 6+16Ar+6 dual-silver Low-E | U 1.0, SHGC 0.32 |
| High wind / larger module | 8+16Ar+8 Low-E | 32 mm, stiffer lite |
| Acoustic road-side façade | 6+1.52PVB+16Ar+8 acoustic | STC 40+ |
| LEED Platinum / passive house | Triple 6+12Ar+6+12Ar+6 Low-E | U 0.6 |
| Luxury lobby vision | 8 low-iron + 16Ar + 8 low-iron Low-E | Water-white clarity |
10. FAQ – Curtain Wall Vision Glass
Q1: Is vision glass just clear glass?
No. Vision glass is the position in the curtain wall; the glass itself is normally an IGU with Low-E, argon and tempered lites – rarely monolithic clear.
Q2: Can vision glass be laminated?
Yes. 6+1.52PVB+16Ar+6 is common where fall-out protection or acoustic upgrade is required; the laminated lite is usually the inner lite.
Q3: Does vision glass need to match spandrel glass?
Visually yes – same coating family, same base tint, same reflectance. Structurally they differ (spandrel is opaque). Mismatched samples cause "read-through" complaints on overcast days.
Q4: What Low-E surface is used in curtain wall vision IGU?
Almost always surface #2 (inboard face of outboard lite) for double glazed; surface #2 or #3 for triple.
Q5: What is the typical U-value for curtain wall vision glass?
Double Low-E argon: 0.8–1.4 W/m²K. Triple Low-E krypton: down to 0.5.
Q6: How big can a vision glass panel be?
Standard suppliers cap around 2440×1500 mm per unitized module; Jumbo Glass produces up to 6000×3300 mm for stick or oversized unitized systems.
Q7: Is vision glass more expensive than storefront glass?
Per m², yes – curtain wall vision IGU carries higher coating grade, argon, warm-edge spacer and jumbo handling. But it is specified by make-up, not by thickness alone.
Q8: Can I send my glass schedule directly for quotation?
Yes – curtain wall procurement runs on schedules/elevations, not vague enquiries. See RFQ block below.
11. Indicative Price (FOB China, per m²)
| Make-Up | Indicative FOB |
|---|
| 6+12Ar+6 clear IGU (no Low-E) | US$ XX–XX /m² |
| 6+16Ar+6 dual-silver Low-E | US$ XX–XX /m² |
| 8+16Ar+8 Low-E | US$ XX–XX /m² |
| 6+1.52PVB+16Ar+6 Low-E | US$ XX–XX /m² |
| Triple glazed Low-E | US$ XX–XX /m²
Final price moves with: coating grade, low-iron substrate, laminated ply, jumbo size yield loss, warm-edge spacer, ceramic frit, quantity, crating, incoterm. |
12. Request Curtain Wall Vision Glass Quote
Send your glass schedule / elevation / CW frame shop drawings:
- Project location & climate zone
- System type – stick / unitized / semi-unitized
- Vision glass make-up (e.g. 6+16Ar+6 Low-E surface #2)
- Coating spec – single/dual/triple silver, SHGC & VLT target
- Glass type – clear / low-iron / grey / bronze / blue / reflective
- Inner lite – tempered / laminated / acoustic PVB
- Spacer & gas – aluminium / warm-edge, argon / krypton
- Max panel size & quantity per type
- Spandrel match requirement (frit colour code)
- Standards – EN / ASTM / AS+NZS
- Upload: PDF / DWG / Glass Schedule / Elevation
- Incoterm & destination port
- 📧 sales@jumbotemperedglass.com ｜ 🌐 Upload at www.jumbotemperedglass.com
- Response: feasibility + U/SHGC/VLT calc within 48 h.
