Glass Railing | Tempered & Laminated Glass for Railing Systems – Jumbo Glass
Tempered & Laminated Glass – Engineered Solutions for Balcony, Stair & Terrace Railing Systems
Glass railing refers to architectural railing systems where glass serves as the primary guard infill, replacing traditional metal balusters or solid panels. Unlike standard window glass, glass railing must meet structural guard load requirements (typically 0.74–1.5 kN line load per building codes) while providing safety glazing performance.
For procurement managers and railing system fabricators, specifying the correct glass configuration is critical: the glass must resist impact, retain occupants if broken, withstand wind loads, and integrate seamlessly with hardware. Our jumbo glass capability enables uninterrupted railing panels up to 3660 × 13000 mm – a key differentiator for high‑end architectural projects.
💡 Why glass railing is specified: Glass railing combines safety, aesthetics, and unobstructed views. It is mandatory in many modern building codes for guardrails where visibility is required. The global market for glass railing systems is growing at ~6% annually, driven by urban high‑rise residential, hotels, and commercial terraces. For glass exporters, railing glass represents a high‑volume, specification‑driven product with repeatable project cycles.
| Parameter | Standard Railing Glass | Jumbo Railing Glass |
|---|---|---|
| Glass Types | Tempered, Laminated, Tempered‑Laminated | Tempered, Laminated, Tempered‑Laminated, Low‑Iron |
| Thickness Range | 10–21.52 mm | 10–21.52 mm |
| Max Width | ≤2440 mm | ≤3660 mm |
| Max Height | ≤6000 mm | ≤13000 mm (extreme up to 14500 mm) |
| Max Panel Area | ~15 m² | ~48 m² |
| Guard Load Capacity | 0.74–1.5 kN/m (code dependent) | Same (engineered per panel) |
| Safety Performance | ANSI Z97.1 / EN 12600 compliant | Same + jumbo validation |
The first decision for procurement managers is selecting the railing system type, as this determines glass support conditions and required thickness.
| Railing System | Glass Support Condition | Typical Glass Configuration | Best For |
|---|---|---|---|

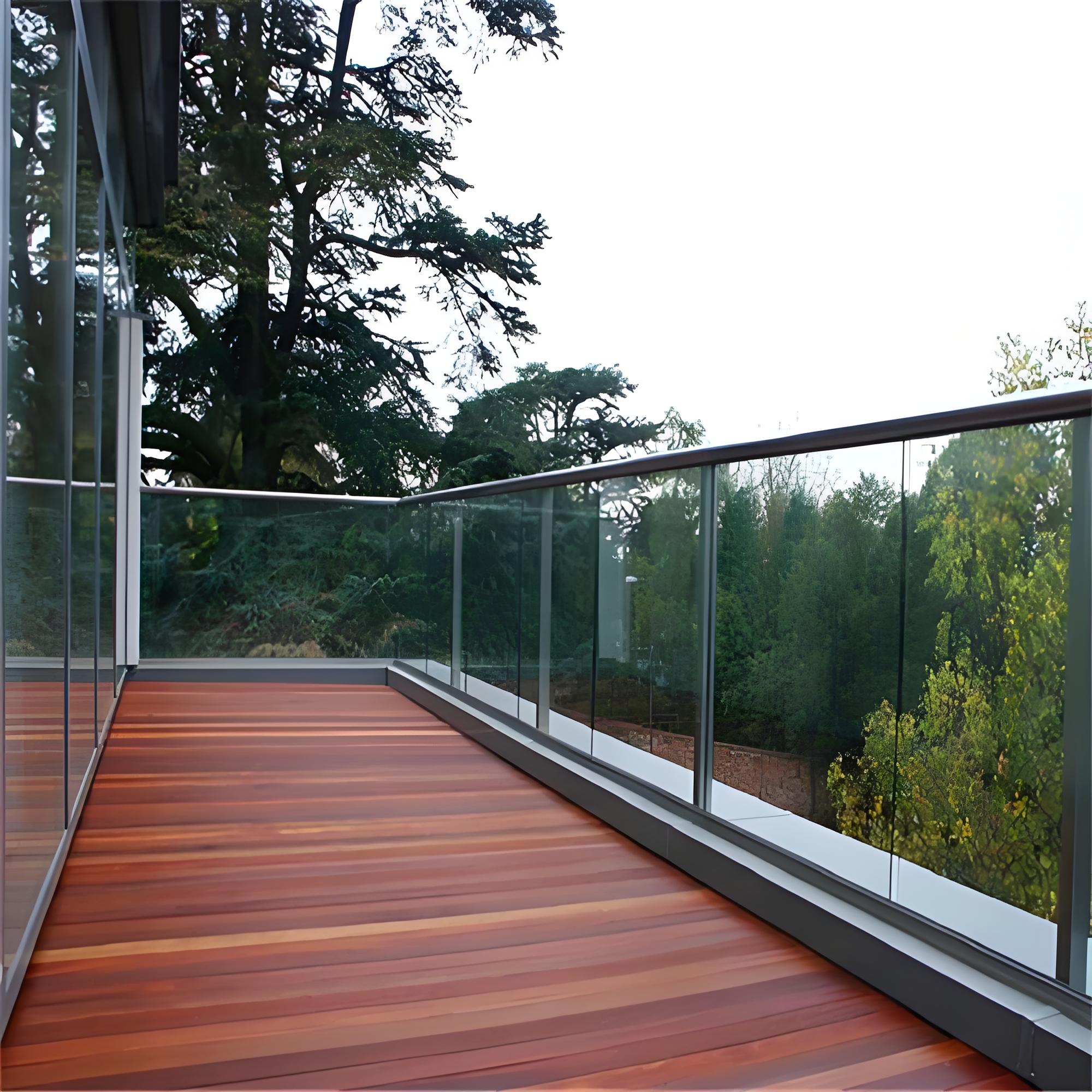

| Frameless Glass Railing | Base shoe / channel | 12mm Tempered, 13.52mm Laminated, 17.52mm Laminated | Luxury balconies, minimalist design |
| Semi‑Frameless | Minimal posts + top rail | 10mm Tempered, 12mm Tempered | Residential balconies, cost‑effective |

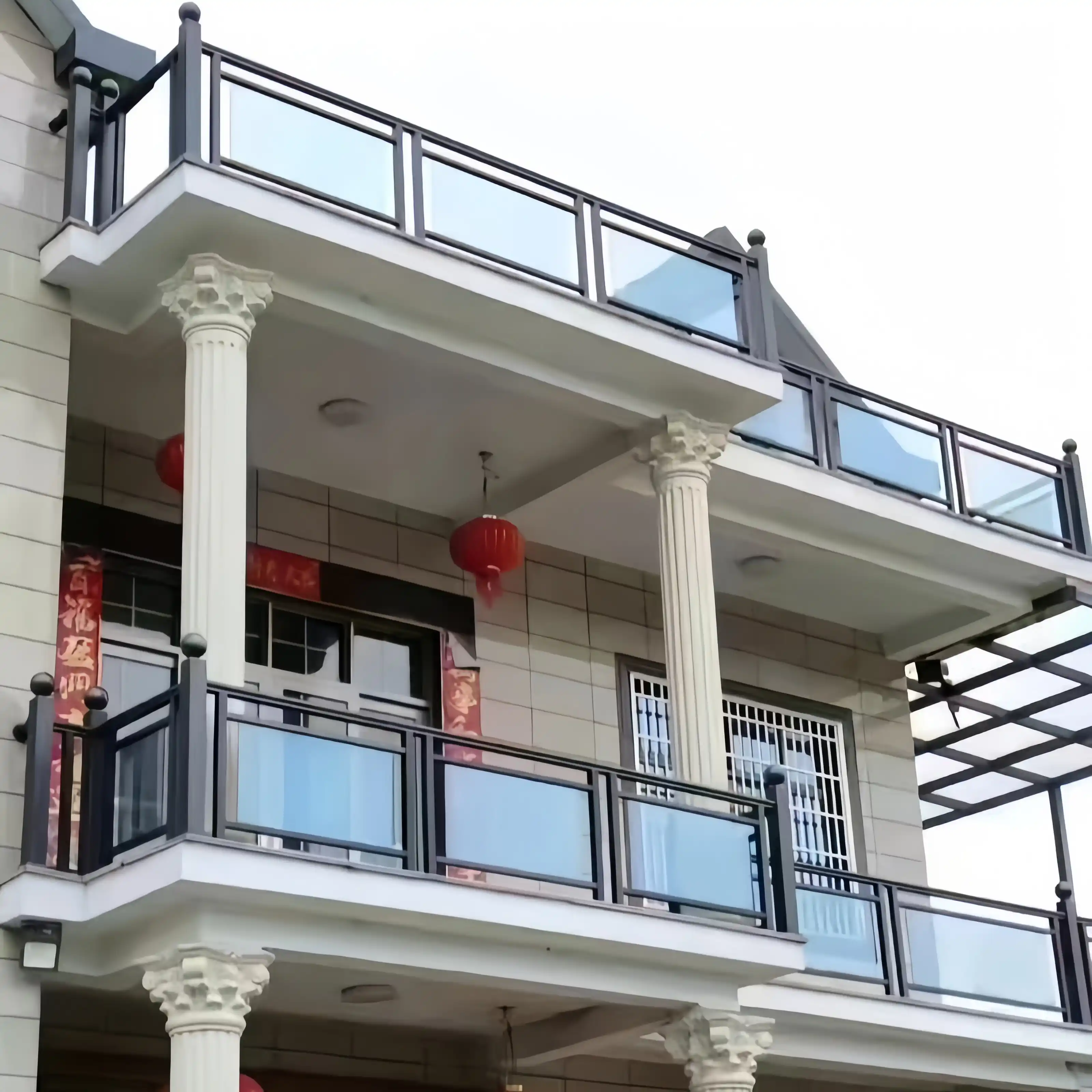

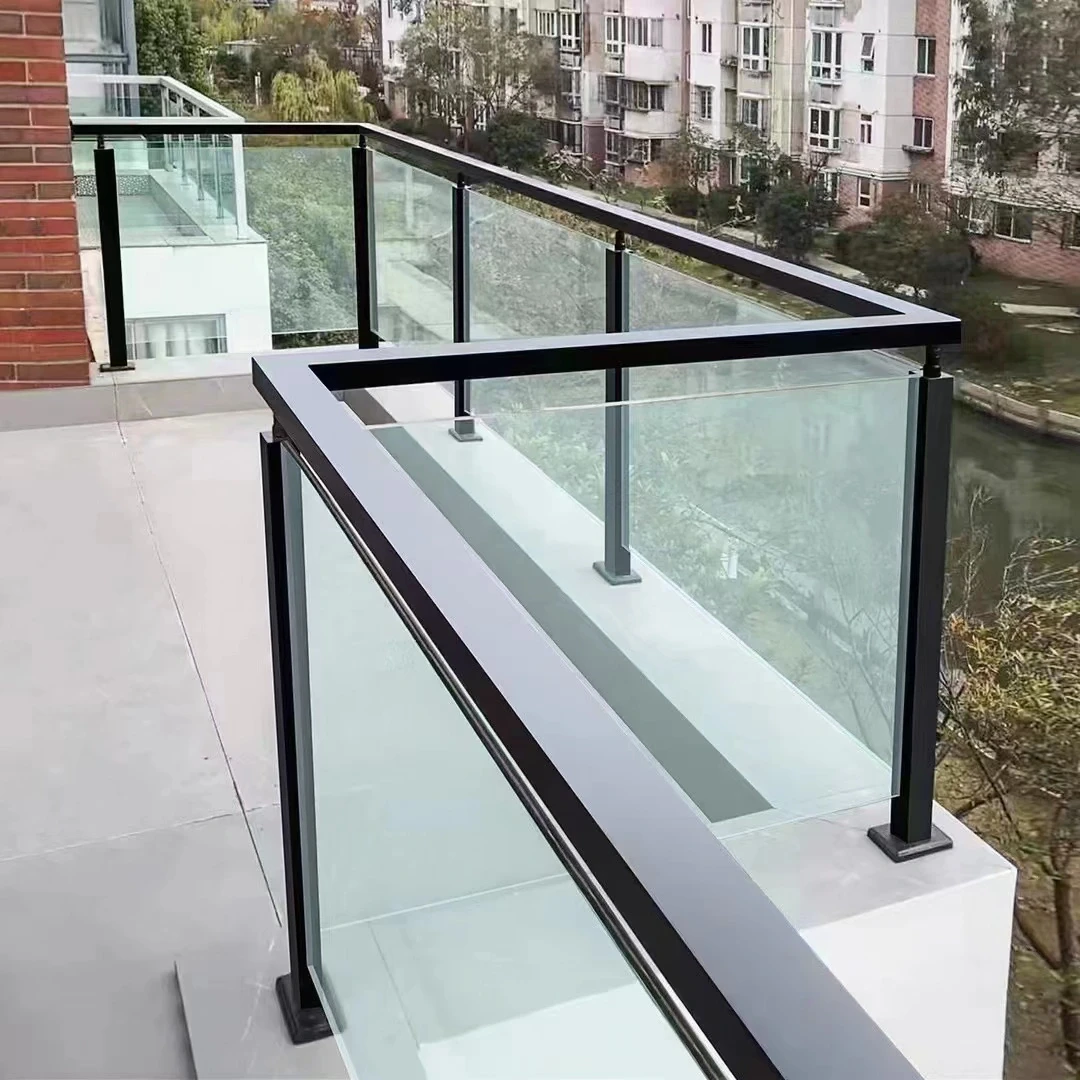

| Post‑and‑Rail | Vertical posts + top rail | 10mm Tempered, 12mm Tempered | Apartment buildings, code‑driven projects |
| Point‑Supported | Standoffs / spiders | 13.52mm Laminated, 17.52mm Laminated | Atriums, staircases, feature railings |
| Glass‑to‑Glass | H‑channels / miter joints | 13.52mm Laminated, 21.52mm Laminated | Corner‑free glass walls |
This is the core decision matrix for procurement managers.
| Glass Configuration | Typical Use | Key Benefit | Recommended Thickness |
|---|---|---|---|
| Monolithic Tempered | Standard railing systems | Safety break pattern, cost‑effective | 10mm, 12mm |
| Laminated Glass | Safety‑critical railing | Post‑breakage retention, prevents fall‑through | 10.76mm, 13.52mm |
| Tempered‑Laminated | Premium railing | Strength + post‑breakage retention | 13.52mm, 17.52mm |
| Low‑Iron Laminated | Luxury architecture | Maximum clarity, no green edge | 13.52mm, 17.52mm |
| Acoustic Laminated | Noise‑sensitive balconies | Improved acoustic damping | 13.52mm (acoustic PVB) |
Glass railing is not selected by thickness alone. Procurement managers must verify:
| Application | Typical Guard Load | Applicable Standard |
|---|---|---|
| Residential balcony | 0.74 kN/m | IRC, NBC |
| Commercial balcony | 1.0–1.5 kN/m | IBC, EN 1991‑1‑1 |
| Stair guard | 1.0 kN/m | IBC, AS/NZS 1170 |
| Standard | Test Method | Requirement |
|---|---|---|
| ANSI Z97.1 | 100 lb (445 N) impact | No penetration |
| EN 12600 | 40 kg soft body impact | Class 1B1 or 2B2 |
| AS/NZS 2208 | 100 kg pendulum impact | No penetration |
| Glass Type | Post‑Breakage |
|---|---|
| Monolithic Tempered | Shatters into small cubes, openings may form |
| Laminated | Glass cracks but remains bonded, no fall‑through |
| Tempered‑Laminated | Tempered outer cracks, inner retains fragments |
| Height Above Ground | Typical Wind Load |
|---|---|
| 0–20 m | 1.0–1.5 kPa |
| 20–50 m | 1.5–2.5 kPa |
| 50–100 m | 2.5–4.0 kPa |
💡 Engineering note: Final glass thickness must be verified by calculation based on panel dimensions, support conditions, guard load, wind load, and local building code. We provide FEA reports for all jumbo railing glass orders.
| Configuration | Thickness | Typical Application |
|---|---|---|
| Tempered Glass | 10 mm | Residential balcony, low‑rise |
| Tempered Glass | 12 mm | Apartment balcony, standard height |
| Laminated Glass | 10.76 mm | Safety‑critical balcony |
| Laminated Glass | 13.52 mm | High‑rise balcony, point‑supported |
| Tempered‑Laminated | 13.52 mm | Premium frameless railing |
| Tempered‑Laminated | 17.52 mm | Large panels, high wind load |
| Tempered‑Laminated | 21.52 mm | Extra‑large panels, special projects |
| Low‑Iron Laminated | 13.52 mm | Luxury residential, oceanfront |
| Low‑Iron Laminated | 17.52 mm | High‑end commercial terraces Important: These are indicative thicknesses only. Final selection must be engineered. |
Our jumbo tempering and laminating lines enable railing glass at sizes that most suppliers cannot match.
| Parameter | Standard | Jumbo |
|---|---|---|
| Max Width | ≤2440 mm | ≤3660 mm |
| Max Height | ≤6000 mm | ≤13000 mm (extreme up to 14500 mm) |
| Max Area | ~15 m² | ~48 m² |
| Glass Thickness | 10–21.52 mm | 10–21.52 mm |
| Flatness Tolerance | ±0.5 mm/m | ±0.5 mm/m |
Railing glass requires precise processing for hardware integration.
| Edge Type | Appearance | Best For |
|---|---|---|
| Flat Ground | Smooth matte | Standard railing |
| Polished | Glossy, transparent | Frameless, exposed edges |
| Beveled | Angled decorative | Premium residential |
While safety and structure are primary, appearance matters.
| Appearance | Suitable Application | Notes |
|---|---|---|
| Clear | Standard architectural railing | Slight green edge |
| Low‑Iron / Ultra‑Clear | Luxury architecture | Water‑white, no green edge |
| Grey Tinted | Contemporary design | Subtle solar control |
| Bronze Tinted | Hospitality, resorts | Warm aesthetic |
| Frosted / Acid‑Etched | Privacy screens | Obscures view |
| Patterned | Decorative projects | Custom textures |
| Application | Typical Glass | System Type |
|---|---|---|
| Residential Balconies | 10mm Tempered, 12mm Tempered | Post‑and‑rail, semi‑frameless |
| Apartment Buildings | 12mm Tempered, 13.52mm Laminated | Post‑and‑rail |
| Hotels & Resorts | 13.52mm Laminated, Low‑Iron | Frameless, point‑supported |
| Commercial Terraces | 13.52mm Tempered‑Laminated | Frameless, base shoe |
| Staircases | 12mm Tempered, 13.52mm Laminated | Post‑and‑rail, point‑supported |
| Rooftop Decks | 17.52mm Tempered‑Laminated | Frameless, high wind load |
| Atriums | 13.52mm Laminated | Point‑supported |
| Standard | Scope |
|---|---|
| ASTM E2358 | Standard practice for glazing for railing systems |
| ASTM C1048 | Heat‑treated flat glass – Kind HS, Kind FT |
| EN 12600 | Impact resistance of glass – classification |
| AS/NZS 2208 | Safety glazing for buildings (Australia/New Zealand) |
| ANSI Z97.1 | Safety glazing materials used in buildings |
| EN 14449 | Laminated glass – definition and description |
| CE | European conformity marking |
| SGCC | Safety Glazing Certification Council |
| CCC | China compulsory certification |
Railing glass pricing depends heavily on configuration, thickness, processing, and quantity.
| Configuration | Price Range (USD/m²) |
|---|---|
| 10mm Tempered | $22–32 |
| 12mm Tempered | $26–38 |
| 10.76mm Laminated (PVB) | $38–52 |
| 13.52mm Laminated (PVB) | $48–66 |
| 13.52mm Tempered‑Laminated | $58–78 |
| 17.52mm Tempered‑Laminated | $78–108 |
| 21.52mm Tempered‑Laminated | $98–138 |
| Low‑Iron Laminated (13.52mm) | $68–88 |
| Service | Surcharge |
|---|---|
| Polished edges | +$3–6/m |
| Beveled edges | +$6–12/m |
| Hole drilling (per hole) | +$2–5 |
| CNC cut‑outs | +$8–20 per cut‑out |
| Heat soak test | +$4–8/m² |
| SGP interlayer | +$12–20/m² vs. standard PVB |
Submit your project requirements for a competitive FOB quotation and engineering assessment.
Required Information:
Q1: What glass is best for frameless glass railing?
13.52mm or 17.52mm laminated glass (PVB or SGP) is preferred for post‑breakage retention. 12mm tempered glass may be used in low‑risk residential applications.
Q2: Is laminated glass required for glass railings?
Many building codes now require laminated glass for guardrails, especially for heights >1.2m or where fall risk is high. Even when not mandated, it is strongly recommended.
Q3: What thickness is used for balcony glass railing?
Typically 10–12mm tempered for low‑rise residential; 13.52mm laminated for high‑rise and commercial balconies.
Q4: Can you produce oversized railing glass panels?
Yes. We produce railing glass up to 3660 × 13000 mm. Larger sizes require engineering review.
Q5: Can holes and notches be CNC processed?
Yes. All holes, notches, and cut‑outs must be completed before tempering. We provide CNC processing to your hardware drawings.
Q6: What is the difference between tempered and tempered‑laminated glass?
Tempered glass is strong but shatters on impact. Tempered‑laminated combines tempered outer glass with a laminated inner layer – providing both strength and post‑breakage retention.
Q7: What standards apply to glass railing?
ASTM E2358, EN 12600, AS/NZS 2208, ANSI Z97.1 are the primary standards. Local building codes dictate guard load and safety requirements.
Q8: What is the lead time?
Standard sizes: 4–6 weeks. Jumbo sizes: 6–8 weeks. Laminated + complex processing: +1–2 weeks.
Q9: How do I select the correct thickness?
Thickness depends on panel dimensions, support conditions, guard load, wind load, and local code. We provide FEA calculations to verify compliance.
Q10: Do you provide engineering support?
Yes. We supply structural calculations and FEA reports for all railing glass orders.
