Jumbo Glass - Professional Laminated Safety Glass Supplier in China
1.What's laminated glass?

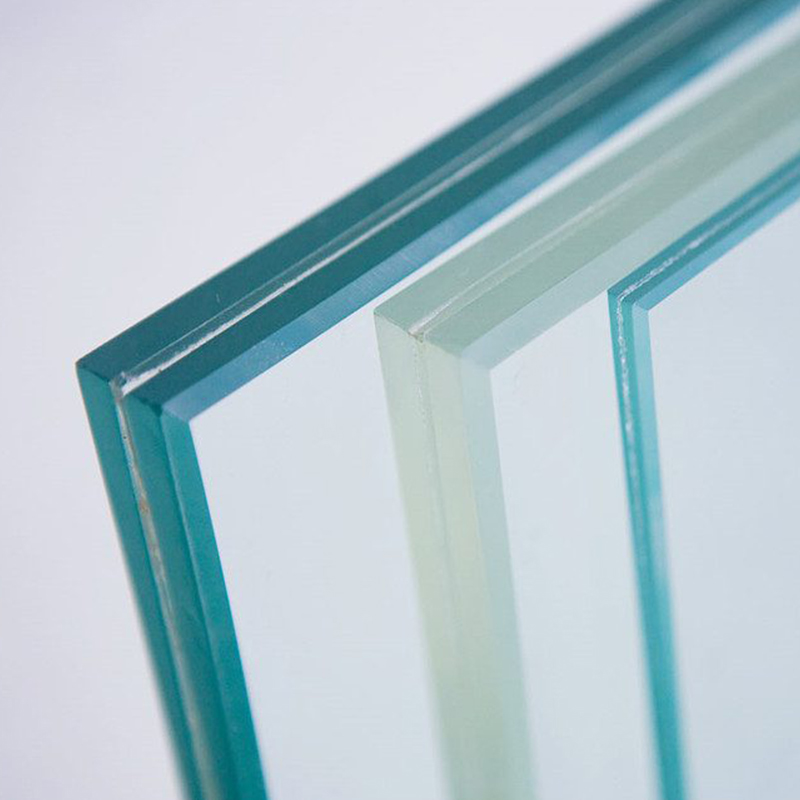

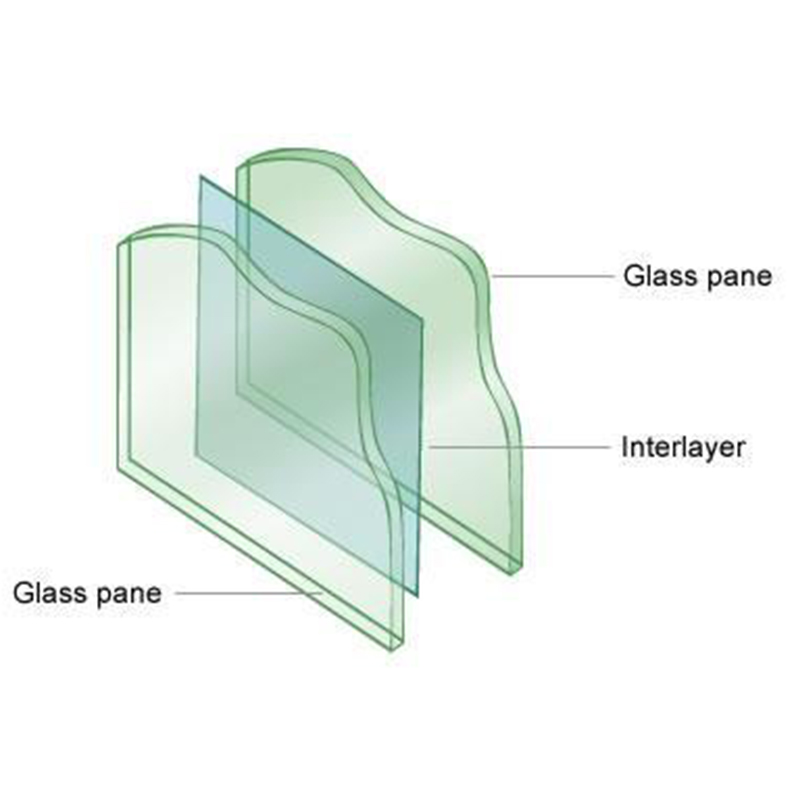

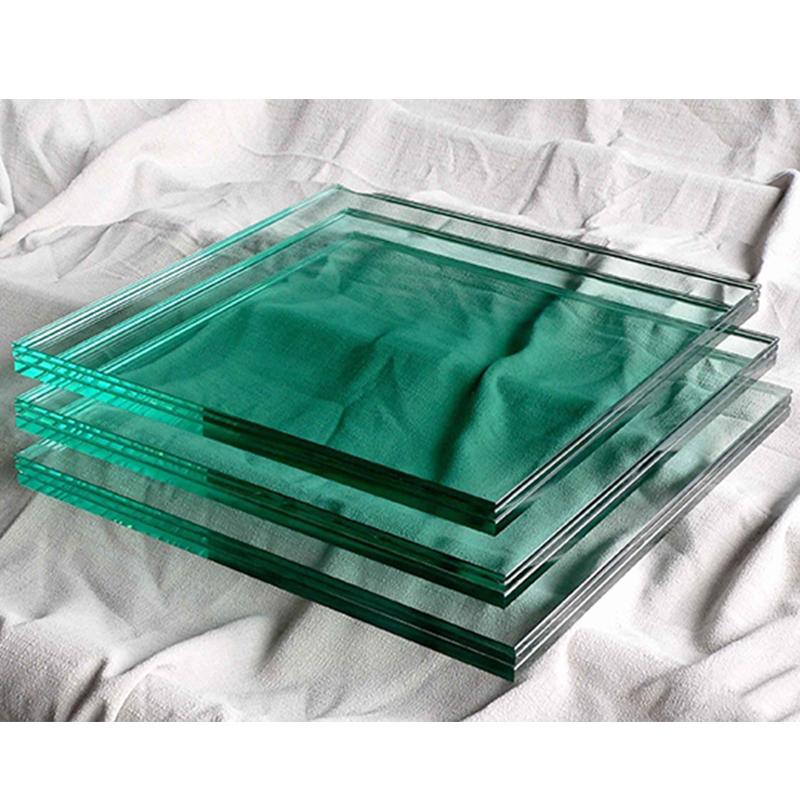

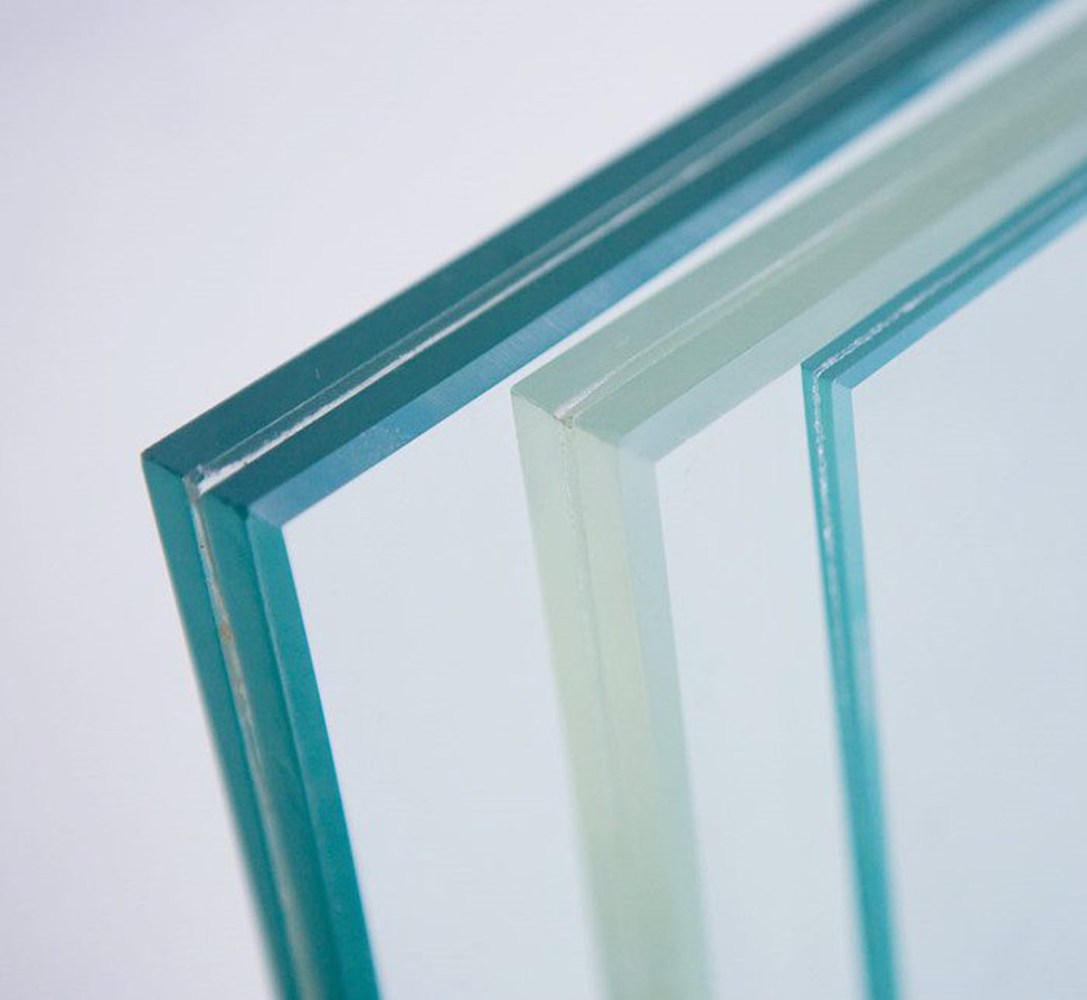

Laminated Glass is made up of two or more layers of glass permanently bonded together with an interlayer (PVB / SGP / EVA) via a controlled, highly pressurized and industrial heating process. The lamination process results in the glass panels holding together in the event of breakage, reducing the risk of harm. Laminated Glass is classified as Grade A Safety Glass. There is several laminated glass types manufactured using different glass and interlay options that produce a variety of strength and security requirements.
When annealed glass is broken, it will break into shape pieces which is dangerous to humans. When tempered glass is broken, it will form small particles with obtuse angles. When laminated glass is broken, the glass particles will still adhere to the interlayer material. As are shown in below pictures. Generally speaking, laminated glass is safer than tempered glass and annealed glass.
Laminated glass advantages
✅ High Security
When laminated glass is attacked by outside force, it is hard to be penetrated because the interlayer film(PVB/EVA/SGP) has strong tenacity and can absorb and weaken a mass of striking energy. Even if the laminated glass is broken, the splinters will stick to the interlayer and not scatter.
✅ Sound Insulation
The interlayer film(PVB/EVA/SGP) is a kind of organic material and it can block sound waves. Therefore, the laminated safety glass offers better soundproofing performance than the pure glass with the same thickness.
✅ Anti-Ultraviolet
Most laminated glass can absorb 99% of incoming ultraviolet radiation. It protects the furniture or appliances from discoloring and damage.
✅ Energy-saving
The interlayer film impedes the transmission of solar heat and reduces cooling loads. Thus saving the energy of power of air conditioners.
✅ Create aesthetic sense to building
Laminated glass with a tinted glass panel or colored interlayer will beautify the buildings and harmonize their appearances with surrounding views which meet the demands of architects.
Process: Autoclave bonding (135℃ / 130-190 psi)
| Type | Interlayer | Thickness | Impact Rating | Sound Insulation | UV Blocking |
|---|---|---|---|---|---|
| PVB Laminated | PVB Film | 1/4"-2-3/8" | EN356 P3A | 32-35dB | ≥99% |
| SGP Bulletproof | SGP Ionoplast | 5/8"-4" | UL752 Level 8 | 38-42dB | 100% |
| EVA Acoustic | EVA Film | 5/16"-2" | ANSI Z97.1 | 35-37dB | ≥95% |
| Colored Laminated | Tinted PVB | 1/4"-1-1/4" | Class 1 | 30dB | ≥98% |
| Parameter | Standard Size | Custom Capacity | Shipping |
|---|---|---|---|
| Panel Thickness | 1/8"-3/4" | 0.08"-1-1/8" | 13,000 sqft/40HQ |
| Max Dimensions | 130"×96" | 200"×130" | Custom crating |
| Interlayer Thickness | 0.015"/0.03" | 0.015"-0.12" | Climate-controlled |
| Special Processing | Waterjet cutting | Curved bending (R≥20") | Breakage <0.1% |
| Project | Country | Solution | Key Achievement |
|---|---|---|---|
| Heathrow Airport | UK | 1" Acoustic PVB Glass | 42dB Noise Blocking |
| Dubai Gold Reserve | UAE | 2" SGP Bulletproof Glass | UL752 Level 8 |
| Sydney Opera House | Australia | Ultra-clear Laminate | >91% VLT |
| Tesla Showroom | USA | Curved Tinted Laminated | Bend Radius R=32" |
🔬 Quality Control: SGS impact test video per batch🏭 Production Power: 5 autoclave lines (55,000 sqft/day)🌐 Certifications: CE/IGCC/ANSI/SGCC📦 Logistics Network: Deliver to 18 countries <7 days
🆓 Get Impact Test Report → Free 12"×12" Sample w/ DHL Shipping

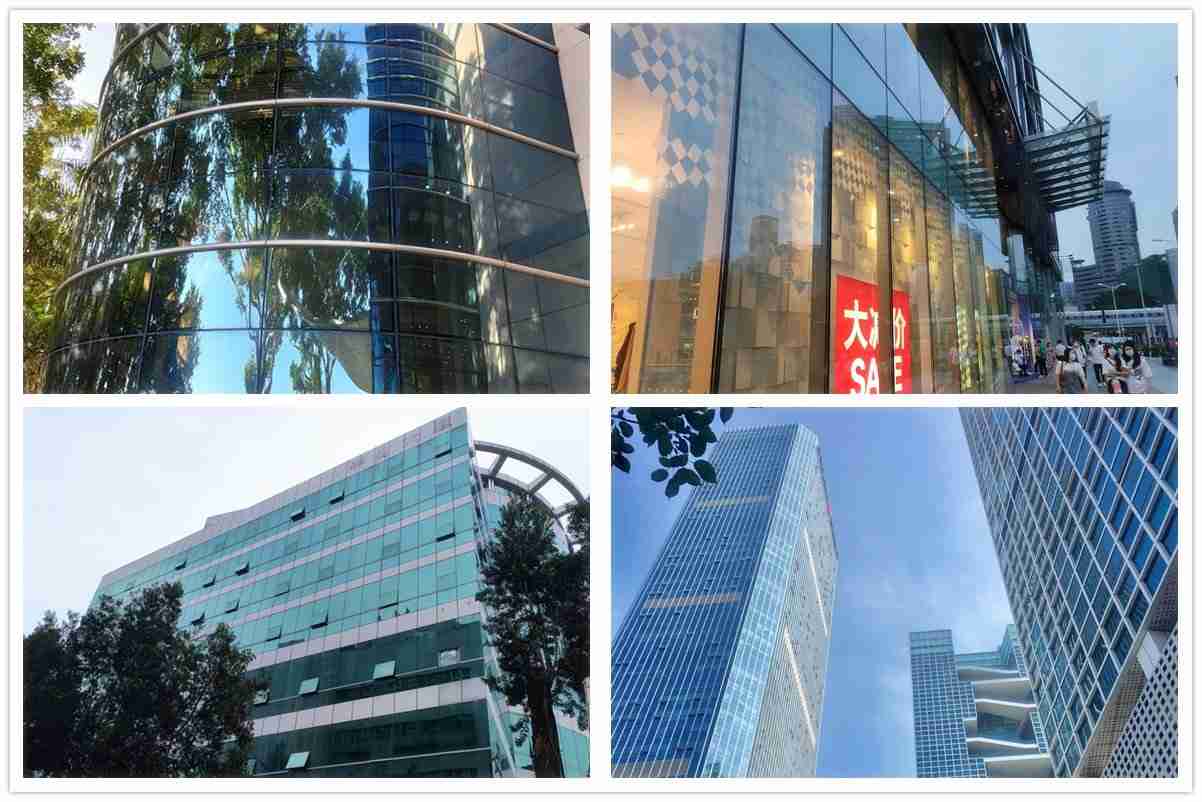

What is laminated glass used for?
Laminated glass can be used for places where super high strength and safety functions are required. Such as prisons, government buildings, banks, etc.
Windows;· Handrails;· Doors;· Tabletop;·Balustrades;· Stairs;· Floors;· Partitions;ETC
FAQ of Laminated Glass
Is laminated glass tempered?
Laminated glass can use non tempered glass or tempered glass for its “sandwiched” panels.
Is laminated glass bulletproof?
Multiple laminated glass with annealed glass has bulletproof function. It will depend on the layers & thickness of glass and interlayer material.
Is laminated glass soundproof?
Laminated glass has very good soundproof function. With noise deduction performance STC>37dB+. It can offer you a very quiet environment.
Is laminated glass better than tempered?
Normally yes. For the same thickness such as 12mm tempered glass VS 6+6mm tempered laminated glass. 6+6mm laminated glass can offer better strength and safety as well as acoustic performance.
Can laminated glass be cut?
For large sheets of annealed laminated glass, such as 6.38mm, 8.38mm, 10.38mm, etc. It is able to be further cut to customized sizes. But for those tempered laminated glass, it cannot be further processed anymore.
Can laminated glass be tinted?

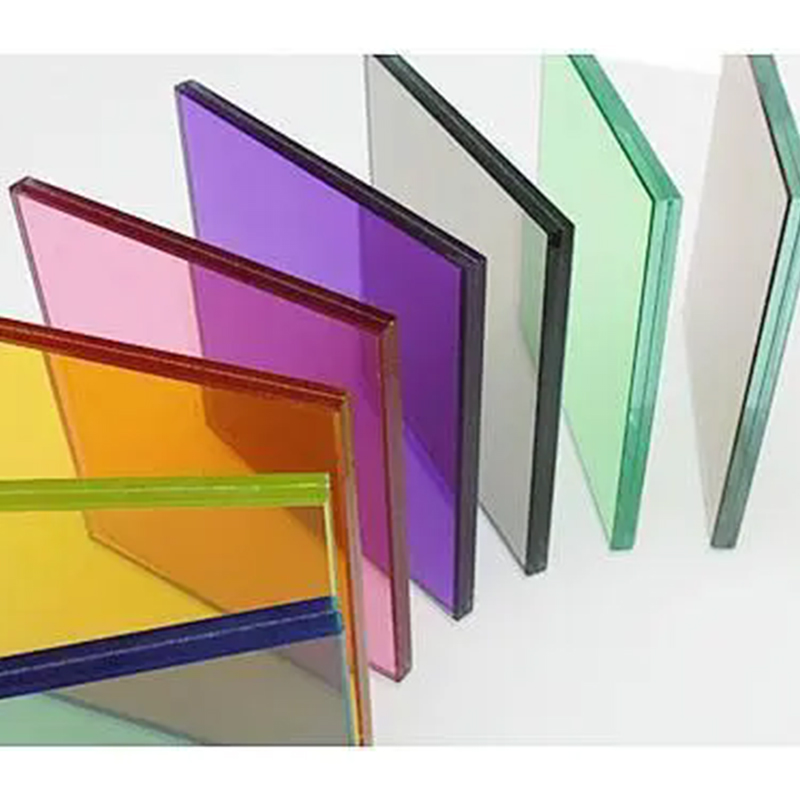

Yes! Either you can use tinted glass for lamination or use colored interlayer material for laminated glass. Both can enrich your decoration effects.
Laminated glass hs code
7007290000
How is laminated glass made step by step?

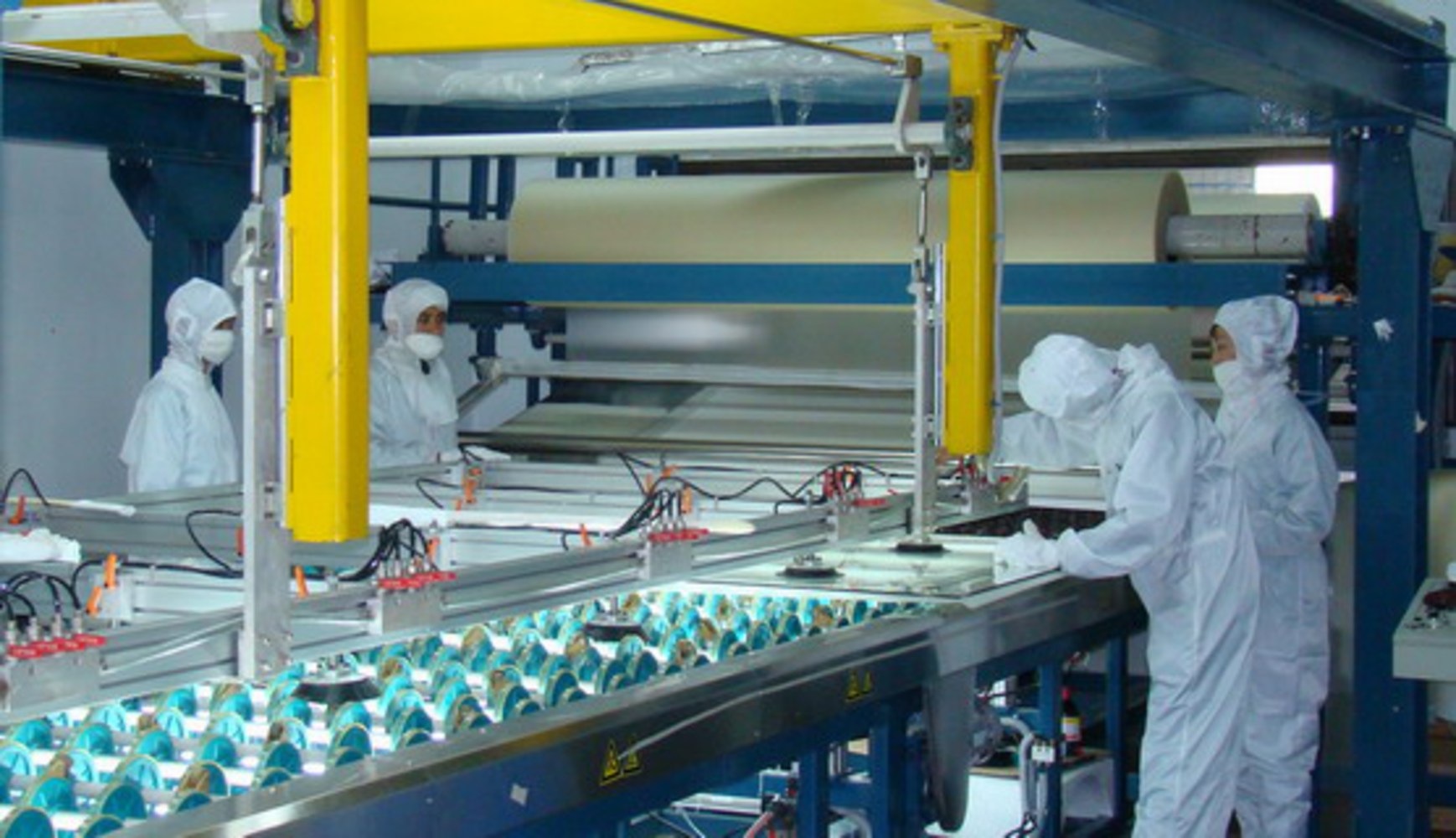

Laminated glass manufacturing process will be as follows: Cutting – > Edging -> Drilling -> Tempering – > Laminating -> Packing.For more details, you can also check here: Advanced Laminated Glass Process
With over 20 years of experience and expertise in glass manufacturing and processing, we are seasoned glass specialists, ready to answer your questions and provide guidance on product selection, installation, and maintenance.
